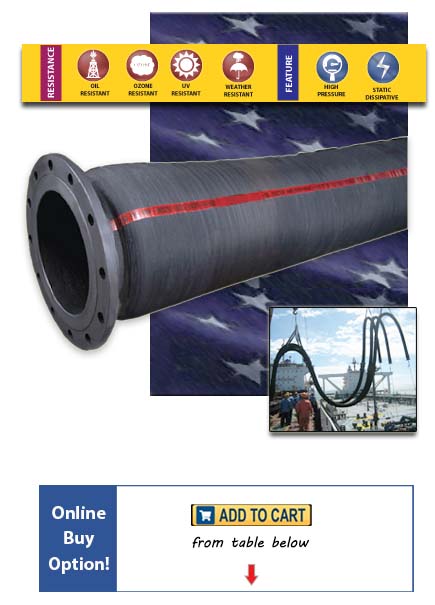

Overview: The Model RP8-AS dock hose assemblies handle fluids including petroleum products on marine docks and ships, and comes with fixed by floating built-in 150# RF steel flanges. This quality ship-to-shore hose has a smooth bore top quality construction built for tough conditions. Neoprene cover with black Nitrile tube, & steel helix reinforcement. Also available in any length or fitting as RP8 hose.

Features:

  • Built-in 150# Fixed x Floating Flanges
  • Neoprene Cover Resistant to Weather, Oil, Cuts, and Abrasion
  • Nitrile Tube is Resistant to Many Petroleum Products
  • 225psi Pressure Rating
  • Meets USCG. 33CFR 154.500 and RMA Class II Requirements

Applications

  • Petroleum to 55% Aromatic
  • Marine Dock Discharge OS&D

Temperature -40F to 190F

scroll to see more products
Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Bend R
(in)
Wt
(lbs)
Product NoPrice
($)

4 20 250 20 216 HOSE-RP8AS $1818.00 Add to Cart
6 10 250 26 227 HOSE-RP8AS $2340.00 Add to Cart
6 20 250 26 355 HOSE-RP8AS $3058.00 Add to Cart
6 25 250 26 419 HOSE-RP8AS $3601.00 Add to Cart
6 30 250 26 483 HOSE-RP8AS $4110.00 Add to Cart
6 40 250 26 613 HOSE-RP8AS $5168.00 Add to Cart
6 50 250 26 741 HOSE-RP8AS $6220.00 Add to Cart
8 10 250 30 346 HOSE-RP8AS $3442.00 Add to Cart
8 20 250 30 556 HOSE-RP8AS $4559.00 Add to Cart
8 25 250 30 628 HOSE-RP8AS $5387.00 Add to Cart
8 30 250 30 723 HOSE-RP8AS $6159.00 Add to Cart
8 50 250 30 1098 HOSE-RP8AS $9635.00 Add to Cart
10 10 250 60 507 HOSE-RP8AS $5696.00 Add to Cart
10 20 250 60 778 HOSE-RP8AS $7525.00 Add to Cart
10 25 250 60 915 HOSE-RP8AS $9062.00 Add to Cart
12 10 250 100 664 HOSE-RP8AS $6984.00 Add to Cart
12 20 250 100 1001 HOSE-RP8AS $9415.00 Add to Cart
12 25 250 100 1171 HOSE-RP8AS $11086.00 Add to Cart
14 10 250 175 948 HOSE-RP8AS $9679.00 Add to Cart
14 20 250 175 1378 HOSE-RP8AS $13356.00 Add to Cart
