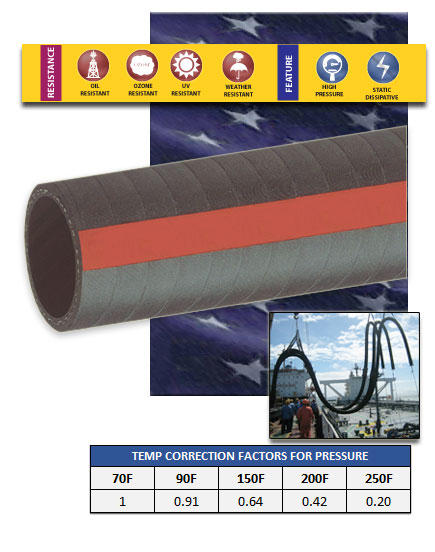

Overview: The Model RP8 is a multi-purpose hose for suction and discharge, and is often used for dock OS&D applications. See the RP8-AS hose assembly page for stocked assemblies of various lengths with built-in fixed by floating flanges. It a neoprene cover and nitrile tube, and is reinforced with multiple plies of polyester tire cord and a steel wire helix. Rated for a high pressure of 250psi. 2" to 12" diameters.
Features:
- Neoprene Cover Resistant to Weather, Oil, Cuts, and Abrasion
- Nitrile Tube is Resistant to Many Petroleum Products
- 225psi Pressure Rating
- Meets all US Coast Guard Approval Requirements for USCG 33CFR 154.500 Dock/OS&D hose
- Manufactured to EN 1765.
Applications:
- Petroleum to 50% Aromatic
- Many other Liquid Chemicals
- Dock Discharge OS&D (Oil Suction and Discharge)
Temperature: -40 to 190F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|---|
| 4 | 4.940 | 225 | 24 | 4.34 | 10 |
| 6 | 7.125 | 225 | 36 | 8.27 | 10 |
| 8 | 10.050 | 225 | 48 | 11.44 | 10 |
| 10 | 11.300 | 225 | 60 | 18.78 | 10 |
| 12 | 13.500 | 225 | 72 | 17.26 | 10 |
