RL1 CxE MILL DISCHARGE HOSE
Hose By Material
Hose By Application
Select a Hose
-- select --
BB1 BRONZE SINGLE BRAIDED HOSE CM1 SINGLE PLY SILICONE HOSE COMMERCIAL HOSE KIT CS1 SANITARY SILICONE HP HOSE CT1 SILICONE TUBING CV2 WIRE REINFORCED SILICONE HOSE CV3 3-PLY SILICONE HOSE CV4 4-PLY SILICONE HOSE ET1 LLDPE POLYETHYLENE TUBING HOSE FD1 FIBERGLASS SILICONE COATED DUCT HOSE FD2 HIGH TEMP SILICONE EXHAUST HOSE FW1 WELD EXHAUST HOSE HM1 HYDRAULIC HOSE HM2 HYDRAULIC HIGH PRESSURE HOSE HM3 HYDRAULIC VERY HIGH PRESSURE HOSE LS1 CxE PLASTIC SUCTION HOSE LS1 MxF NPSH PLASTIC SUCTION HOSE LS1 PLASTIC SUCTION HOSE MB1 COMPOSITE BIODIESEL HOSE MC1 COMPOSITE CHEMICAL HOSE MC2 COMPOSITE PTFE LINED CHEMICAL HOSE MD1 ALUMINUM DUCT HOSE MD2 STAINLESS STEEL DUCT HOSE MD3 STAINLESS STEEL DUCT HOSE ML1 COMPOSITE BOTTOM LOADING HOSE MP1 COMPOSITE PETROLEUM HOSE MP2 COMPOSITE SPECIAL PETROLEUM HOSE MP3 COMPOSITE LPG HOSE MV1 COMPOSITE VAPOR RECOVERY HOSE PA1-AS PVC AIR HOSE ASSEMBLY PD1 CxE PVC LAYFLAT DISCHARGE HOSE PD1 MxF NPSH PVC LAYFLAT DISCHARGE HOSE PD1 PVC LAYFLAT DISCHARGE HOSE PD2 CxE PVC HEAVY DUTY LAFLAT DISCHARGE PD2 MxF NPSH PVC HEAVY DUTY LAFLAT DISCH PD2 PVC HEAVY DUTY LAFLAT DISCHARGE HOSE PD3 PVC EXTRA HEAVY DISCHARGE HOSE PH1 TPR MATERIAL HANDLING HOSE PH2 PVC CLEAR MATERIAL HANDLING HOSE PH5 POLYURETHANE LINED MATERIAL HOSE PI1 PVC INTERLOCK DUCT HOSE PM1-AS TPE AIR HOSE ASSEMBLY PN1 CxE PVC SUCTION HOSE PN1 MxF NPSH PVC SUCTION HOSE PN1 PVC SUCTION HOSE PN2 CLEAR PVC SUCTION HOSE PN2 CxE CLEAR PVC SUCTION HOSE PN2 MxF NPSH CLEAR PVC SUCTION HOSE PP1 SPRAY HOSE PP2 SPRAY HOSE PS1 PVC FOOD AND DAIRY HOSE PT1 PVC BRAID REINFORCED HOSE PT2 PVC CLEAR HOSE PT5 PVC WIRE REINFORCED VACUUM HOSE PV1 INDUSTRIAL VACUUM HOSE PV2 COMMERCIAL VACUUM HOSE PV3 POLYETHYLENE VACUUM HOSE RA1-AS S/S BRAIDED RUBBER HOSE ASSEMBLY RB1 SAND BLAST HOSE RC2 CxE UHMWPE CHEMICAL HOSE RC2 MxF UHMWPE CHEMICAL HOSE RC2 UHMWPE CHEMICAL HOSE RC3 CHEMICAL / PAINT HOSE RC9 CL2 CHLORINE HOSE RD1 RUBBER DISCHARGE HOSE RD4 CxE RUBBER LAYFLAT DISCHARGE HOSE RD4 MxF RUBBER LAYFLAT DISCHARGE HOSE RD4 RUBBER LAYFLAT DISCHARGE HOSE RD6-SLP SLIP RING COUPLED DISCHARGE HOSE RE1 ELEPHANT TRUNK HOSE RG1 GARAGE EXHAUST HOSE RG2 GARAGE EXHAUST HOSE WITH WIRE RH1 RUBBER MATERIAL HANDLING HOSE RH2 RUBBER MATERIAL HANDLING HOSE RK1-AS CONCRETE PUMP HOSE RL1 CxE MILL DISCHARGE HOSE RL1 MILL DISCHARGE HOSE RL1 MxF NPSH MILL DISCHARGE HOSE RM1 MULTIPURPOSE RUBBER NITRILE HOSE RM2 MULTIPURPOSE RUBBER EPDM HOSE RM2-ASM EPDM RUBBER AIR HOSE ASSEMBLY RM2-ASU UNIVERSAL EPDM HOSE ASSEMBLY RM3-AS NITRILE 500PSI AIR HOSE ASSEMBLY RM4 RUBBER WIRE REINFORCED HOSE RN1 CxE RUBBER SUCTION HOSE RN1 MxF NPSH RUBBER SUCTION HOSE RN1 RUBBER SUCTION HOSE RN2 CxE LIGHTWEIGHT RUBBER SUCTION HOSE RN2 LIGHTWEIGHT RUBBER SUCTION HOSE RN2 MxF NPSH LIGHTWEIGHT RUBBER SUCTION RO1 PUSH-ON HOSE RP1 CxE PETROLEUM HIGH PRESSURE HOSE RP1 PETROLEUM HOSE RP1C PETROLEUM CORRUGATED HOSE RP1HP PETROLEUM HIGH PRESSURE HOSE RP1HPC PETROLEUM HIGH PRES CORGD HOSE RP3-AS HARDWALL GASOLINE CURB PUMP HOSE RP5-AS HEATING OIL DELIVERY HOSE RP6 OIL DISCHARGE HOSE RP8 DOCK HOSE RP8-AS DOCK HOSE ASSEMBLIES RP9 HOT TAR AND ASPHALT HOSE RR1-AS HIGH PRESSURE HOSE ASSEMBLY RS1 BUTYL RUBBER SUCTION HOSE RS10 HOT OIL SANITARY HOSE RS3 EPDM FOOD HOSE RS4 NITRILE FOOD HOSE RS5 RUBBER SANITARY DISCHARGE HOSE RS7 POTABLE WATER HOSE RSB BREWERY HOSE RSW WINERY HOSE RT1 STEAM HOSE RT2 FOOD GRADE STEAM HOSE RT3 STEAM CLEANER HOSE ASSEMBLY RU1-AS PRESSURE WASHER HOSE RV1 OVER THE PIPE HOSE RV2 OVER THE PIPE HOSE WITH WIRE RW1 RUBBER WATER HOSE RW1-AS WATER HOSE ASSEMBLY RW4-AS WASHDOWN HOSE SB1 STAINLESS SINGLE BRAIDED METAL HOSE SB2 STAINLESS DOUBLE BRAIDED METAL HOSE SB2HP STAINLESS BRAIDED METAL HOSE SB2VHP STAINLESS BRAIDED METAL HOSE SB3 STAINLESS HIGH PRESSURE BRAIDED HOSE SI1 INTERLOCKED STAINLESS UNPACKED HOSE SI2 INTERLOCKED STAINLESS PACKED HOSE SI3 INTERLOCKED STAINLESS SMOOTH HOSE SI9 METAL HOT TAR AND ASPHALT HOSE SU1 STAINLESS CORRUGATED UNBRAIDED HOSE TC1 PTFE CONVOLUTED BRAIDED HOSE TC2 PTFE CONVOLUTED BRAIDED HOSE TC3 PTFE CONVOLUTED BRAIDED HOSE TC4 PFA CONVOLUTED BRAIDED HOSE TD1 THERMOPLASTIC RUBBER DUCT HOSE TD10 HIGH TEMPERATURE DUCT HOSE TD10HT ULTRA-HIGH TEMPERATURE DUCT HOSE TD11 POLYURETHANE MATERIAL HANDLING HOSE TD12 PVC DUCT HOSE TD14 FLAME RETARDANT HVAC DUCT HOSE TD4 THERMOPLASTIC RUBBER FDA DUCT HOSE TD5 POLYURETHANE MATERIAL HANDLING HOSE TD7 NEOPRENE COATED DUCT HOSE TD8 FLAME RETARDANT AIR VENT HOSE TD9 PVC AIR LIGHT WEIGHT DUCT HOSE TL1 / TL2 LAWN AND LEAF HOSE TL2 MULCH BLOWING HOSE TR2 FEP RUBBER COVERED HOSE TR3 FEP RUBBER COVERED HOSE TS1 PTFE SMOOTH BORE BRAIDED HOSE TS2 PTFE SMOOTH BORE BRAIDED HOSE TS5 PTFE BRAIDED SMOOTH EXTRA FLEX HOSE UD1 TPU POTABLE WATER LAYFLAT HOSE UD2 TPU FUEL AND CHEMICAL LAYFLAT HOSE UD4 TPU FRACKING WATER LAYFLAT HOSE UD5 TPU TRANSFER LAYFLAT HOSE UH1 HEAVY POLYURETHANE MATERIAL HOSE UT1 POLYURETHANE BRAID REINFORCED HOSE VB1 STORE SACK BLOWER HOSE VB1 UTILITY BLOWER HOSE VB1-HT HIGH TEMPERATURE BLOWER HOSE VB3 INSULATED BLOWER HOSE VB4 PORTABLE HEATER DUCT HOSE VB5 DRYING AND HEATING BLOWER HOSE
Accessories

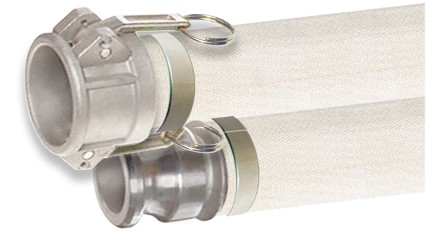

Overview The Model RL1 Mill Discharge Hose is a general purpose, single jacket, lay-flat discharge hose with a rubber SBR rubber tube. It has a single jacket all polyester cover that will not absorb water, and is ready for rough treatment.
Here it is made available for quick purchase with popular aluminum CxE (male x female) cam & groove fittings for 1-1/2" to 6" diameters in 50ft lengths. Also avaialble here with NPSH MxF Swivel fittings.
Features
Stores Easily as Layflat Hose SBR Rubber Tube for Age Resistance Good Weather & UV Resistance Good Pressure Ratings Will Not Get Stiff in in Cold Weather Compared to PVC Lay-Flat Hoses
Applications
Outdoor Water Applications where Compact Storage is Required
Temperature -25F to 185F
scroll to see more products
Dia (in)
Lngth-ft (ft)
Fittings
Pres (psi)
Wt (lbs)
Product No
Wt/Ft (lbs)
Price ($)
Lead Time (days)
1 1/2 50 CAM & GRV M X F AL 150 13 HOSE-RL1AS50CE0150 0.20 $133.40 3
Add to Cart
2 50 CAM & GRV M X F AL 150 18 HOSE-RL1AS50CE0200 0.27 $156.90 3
Add to Cart
2 1/2 50 CAM & GRV M X F AL 150 23 HOSE-RL1AS50CE0250 0.38 $231.00 3
Add to Cart
3 50 CAM & GRV M X F AL 150 25 HOSE-RL1AS50CE0300 0.43 $261.00 3
Add to Cart
4 50 CAM & GRV M X F AL 150 36 HOSE-RL1AS50CE0400 0.62 $423.50 3
Add to Cart
