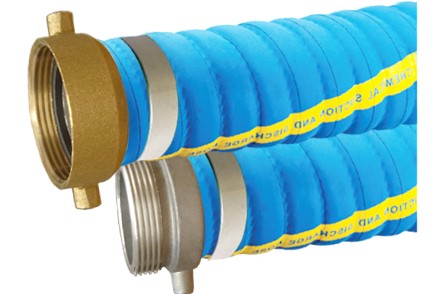

Overview: The Model RC2 Chemical Hose is a quality chemical hose that uses a kink-resistant construction. The Ultra High Molecular Weight Polyethylene(UHMWPE) clear/white tube provides high chemical resistance and higher pressures, with a corrugated EPDM cover.

Here it is made available for quick purchase with popular NSFT MxF (male x female) thread fittings for 1" to 6" diameters in 50ft lengths. Also avaialble here with aluminum  CxE cam & groove fittings.

Features:

  • Designed to handle 98% of all Chemicals, Solvents, and Corrosive Liquids in both Pressure and Suction service
  • Kink Resistant Construction

Applications:

  • Chemical Service in a Variety of Industries

 Temperature:  -40F to 250F

scroll to see more products
Dia
(in)
FittingsPres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
1 NPSH M X F SW 200 2.5 .60
1 1/4 NPSH M X F SW 200 2.75 .65
1 1/2 NPSH M X F SW 200 3 .90
2 NPSH M X F SW 200 4 1.25
2 1/2 NPSH M X F SW 200 5 1.50
3 NPSH M X F SW 200 6 1.90
4 NPSH M X F SW 200 8 3.00
6 NPSH M X F SW 100 20 5.5
