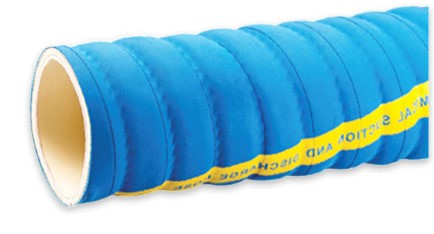

Overview: The Model RC2 Chemical Hose is a quality chemical hose that uses a kink-resistant construction. The Ultra High Molecular Weight Polyethylene(UHMWPE) clear/white tube provides high chemical resistance and higher pressures, with a corrugated EPDM cover. Commonly provided with cam and groove, threads, and other fittings.
Features:
- Designed to handle 98% of all Chemicals, Solvents, and Corrosive Liquids in both Pressure and Suction service
- Kink Resistant Construction
Applications:
- Chemical Service in a Variety of Industries
Temperature: -40F to 250F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
| Dia (in)
| Pres (psi)
| Bend R (in)
| Wt/Ft (lbs)
|
|---|---|---|---|
| 1 | 200 | 2.5 | .60 |
| 1 1/4 | 200 | 2.75 | .65 |
| 1 1/2 | 200 | 3 | .90 |
| 2 | 200 | 4 | 1.25 |
| 2 1/2 | 200 | 5 | 1.50 |
| 3 | 200 | 6 | 1.90 |
| 4 | 200 | 8 | 3.00 |
| 6 | 100 | 20 | 5.5 |
