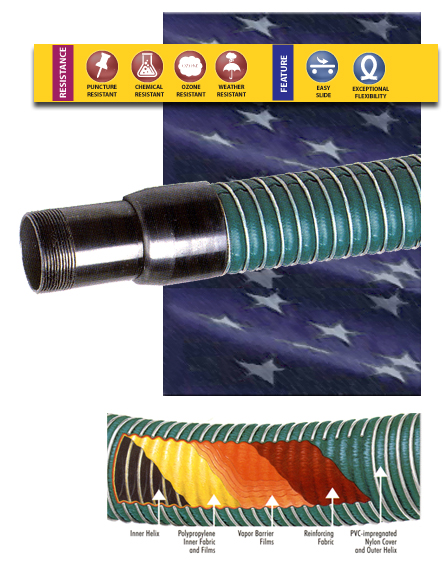

Overview: The Model MC1 is a very flexible composite chemical hose is This premium hose is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time.The MC1 comes standard with a polypropylene coated inner wire, and galvanized steel outer wire. Variations are available with stainless steel inner and outer wires. 1" to 4" diameters.
Features:
- Lightweight, Flexible, and Easy to Handle.
- Range of Chemical Resistance
- Fail Safe Design
Applications:
- In-Plant Liquid Transfer
- Tank Truck Delivery
- Rail Car Loading
- Broad Range of Chemical Transfer where Flexibility, Light Weight, and Safe Design Needed
Temperature: -40F to 212F
Price & Purchase Configurator not available
scroll to see more products
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
---|---|---|---|---|
1 | 250 | 4.0 | 0.58 | 7 |
1 1/2 | 250 | 5.0 | 0.79 | 5 |
2 | 250 | 6.0 | 1.18 | 5 |
3 | 250 | 8.2 | 2.20 | 5 |
4 | 250 | 11.9 | 2.68 | 5 |
