PH1 TPR MATERIAL HANDLING HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

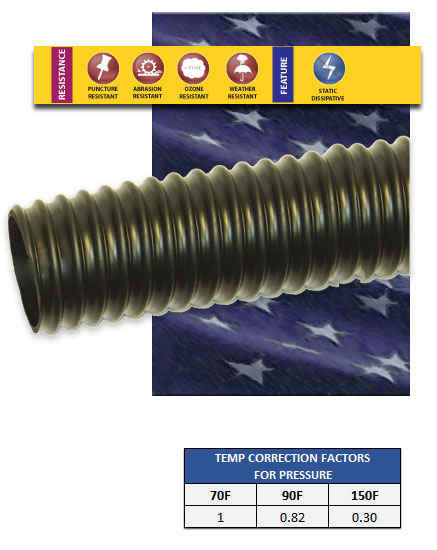

Overview: The Model PH1 is a high quality, heavy duty SBR rubber blended with static carbon black, with a rigid PVC helix material handling hose. This versatile hose is made for transferring and suction of dry materials, and dissipates static. Commonly provided with cam and groove, flange, and other fittings.1-1/2" to 12" diameters.

Features:

  • Very Tough with Great Abrasion Resistance
  • Good Bendability, Easy to Handle
  • Smooth Bore
  • Quiet Operation

Applications:

  • Handling Abrasives such as Grains, Pellets, Gravel, Cement, Dry Fertilizer, Wood Chips, Plastics, Coal Dust, and Crushed Rock
  • Vacuum Trucks

Temperature -40F to 140F

PH1 Thermoplastic Rubber Material Handling Hose Abrasion

scroll to see more products
Dia
(in)
Outer Dia
(in)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt/Ft
(lbs)
Lead Time
(days)
1 1/41.5745FULL20.313
1 1/21 13/1645FULL20.423
22 3/840FULL30.663
2 1/22 7/835FULL30.803
33 1/235FULL41.203
3 1/24 1/830FULL41.403
44 5/830FULL62.003
55 3/83028102.503
66 3/43028123.503
77 13/163027144.103
89.003027156.003
1011 1/428252410.303
1213 3/825252914.003
