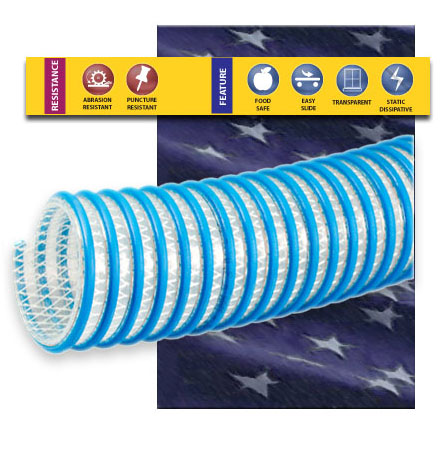

Overview: The Model UH1 Hose is a made from thick polyurethane to provide one of the most durable material handling hoses. Blue PVC external helix and embedded wire. FDA food grade materials. 3" to 6" diameters.
Features:
- Extremely DurableThick Polyurethane
- PVC Helix Allows Dragging & Increased Flexibility
- Embedded Wire Prevents Static Build-up
- FDA Food Grade
- Visual Confirmation of Material Flow
Applications:
- Highly Abrasive Dry Material
- Food Grade Dry Materials
Temperature: -40F to 150F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Note |
Wt/Ft (lbs)
|
|---|---|---|---|---|---|---|
| 3 | 3.78 | 100 | 29 | 10 | STD LENGTH 100FT | 1.18 |
| 4 | 4.85 | 75 | 29 | 12 | STD LENGTH 100FT | 1.58 |
| 5 | 5.80 | 70 | 28 | 14 | STANDARD LGTHS 20/50/100FT | 2.47 |
| 6 | 6.93 | 70 | 28 | 14 | STANDARD LGTHS 20/50/100FT | 2.86 |
