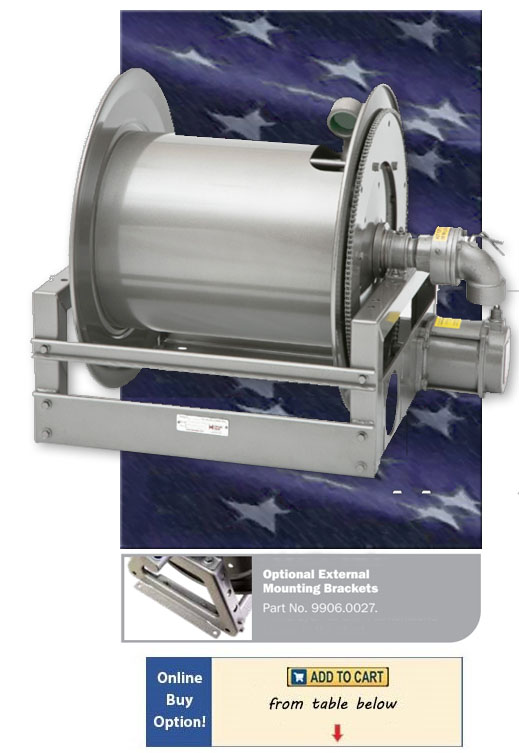

OVERVIEW: The 1500P and 4000P Servies smaller power rewind hose reels are the best quality available. Power can be electric (12V DC and 115V AC), hydraulic, or compressed air, with electric shown below (both 12V DC and 115V AC, with switch and solonoid) with pricing for quick purchase. The models range from 3/8" to 1" diameter hoses in this group, and 3/4" to 3" here. You can't buy a better reel!
FEATURES:
- Lightweight and Compact for Long Hose Lengths
- Chain & Sprocket Drives are powered by Electric, Hydraulic or Air Motors
- Top Quality Components and Coatings
- Higher Pressures of 3,000psi for the 1500P Series, and 2,000psi for the 4000P Series

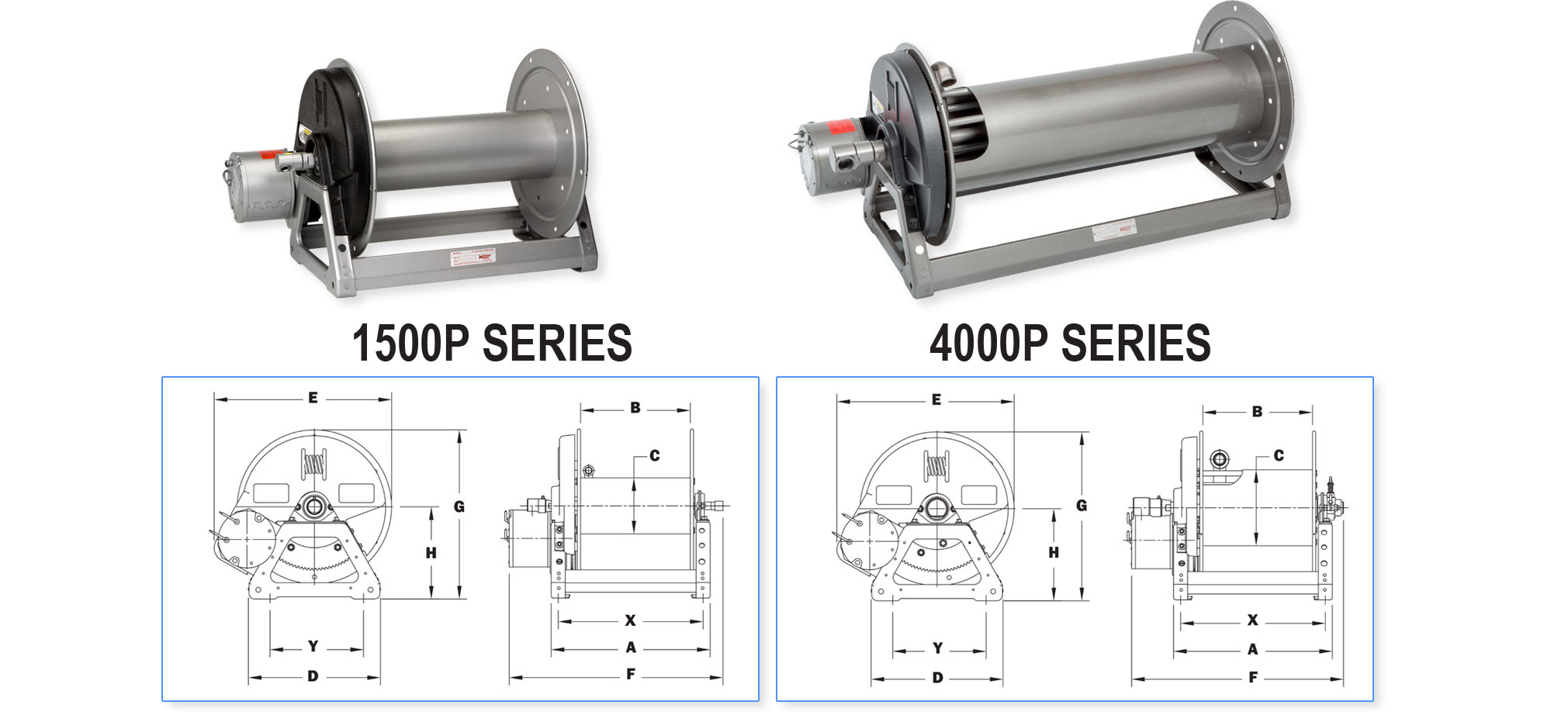

The table below shows standard configurations for purchase. See the Submittal Sheets for additional details and options.
scroll to see more products
| NAME | TYPE |
INLET (in)
|
OUTLET (in)
|
CAPACITY (ft)
|
A | B | C | D | E | F | G | H |
WT (lbs)
|
DIM WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1500 SERIES | 12V DC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-125', 5/8"-50' | 11 | 6 | 6.00 | 14.12 | 19.25 | 19.25 | 18.12 | 9.88 | 45 | 65 | HR-E1514-17-18 | $1,083.95 | Add to Cart |
| 1500 SERIES | 12V DC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-275', 5/8"-125' | 17 | 12 | 6.00 | 14.12 | 19.00 | 23.00 | 18.12 | 9.88 | 47 | 80 | HR-E1520-17-18 | $1,083.95 | Add to Cart |
| 1500 SERIES | 12V DC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-400', 5/8"-200' | 23 | 18 | 6.00 | 14.12 | 19.00 | 29.00 | 18.12 | 9.88 | 50 | 98 | HR-E1526-17-18 | $1,083.95 | Add to Cart |
| 1500 SERIES | 12V DC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 1/2"-375', 5/8"-275' | 27 | 22 | 6.00 | 9.88 | 19.00 | 33.00 | 18.12 | 9.88 | 51 | 110 | HR-E1530-17-18 | $1,083.95 | Add to Cart |
| 1500 SERIES | 12V DC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 1/2"-475', 5/8"-350' | 33 | 28 | 6.00 | 9.88 | 19.00 | 39.00 | 18.12 | 9.88 | 53 | 129 | HR-E1536-17-18 | $1,083.96 | Add to Cart |
| 1500 SERIES | 115V AC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-125', 5/8"-50' | 11 | 6 | 6.00 | 14.12 | 19.25 | 19.25 | 18.12 | 9.88 | 45 | 65 | HR-E1514-17-18-115V | $1,210.30 | Add to Cart |
| 1500 SERIES | 115V AC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-275', 5/8"-125 | 17 | 12 | 6.00 | 14.12 | 19.00 | 23.00 | 18.12 | 9.88 | 47 | 80 | HR-E1520-17-18-115V | $1,210.30 | Add to Cart |
| 1500 SERIES | 115V AC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 3/8"-400', 5/8"-200' | 23 | 18 | 6.00 | 14.12 | 19.00 | 29.00 | 18.12 | 98.00 | 50 | 98 | HR-E1526-17-18-115V | $1,210.30 | Add to Cart |
| 1500 SERIES | 115V AC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 1/2"-375', 5/8"-275 | 27 | 22 | 6.00 | 9.88 | 19.00 | 33.00 | 18.12 | 9.88 | 51 | 110 | HR-E1530-17-18-115V | $1,210.30 | Add to Cart |
| 1500 SERIES | 115V AC ELECT | 1/2" FEM NPT | 1/2" FEM NPT | 1/2"-475', 5/8"-350' | 33 | 28 | 6.00 | 9.88 | 19.00 | 39.00 | 18.12 | 9.88 | 53 | 129 | HR-E1536-17-18-115V | $1,210.24 | Add to Cart |
| 4000 SERIES | 12V DC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-50', 1"-35' | 15 | 10 | 8.00 | 14.12 | 19.00 | 20.75 | 18.12 | 9.88 | 54 | 80 | HR-E4018-17-18 | $1,303.40 | Add to Cart |
| 4000 SERIES | 12V DC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-100', 1"-50' | 21 | 16 | 8.00 | 14.12 | 19.00 | 26.75 | 18.12 | 9.88 | 64 | 98 | HR-E4024-17-18 | $1,303.40 | Add to Cart |
| 4000 SERIES | 12V DC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-150', 1"-75' | 27 | 22 | 14.12 | 19.00 | 19.00 | 32.75 | 18.12 | 9.88 | 75 | 110 | HR-E4030-17-18 | $1,303.40 | Add to Cart |
| 4000 SERIES | 12V DC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-200', 1"-100' | 15 | 30 | 8.00 | 14.12 | 19.00 | 40.75 | 18.12 | 9.88 | 88 | HR-E4038-17-18 | $1,303.40 | Add to Cart | |
| 4000 SERIES | 115V AC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-50', 1"-35' | 15 | 10 | 8.00 | 14.12 | 19.00 | 20.75 | 18.12 | 9.88 | 54 | 80 | HR-E4018-17-18-115V | $1,429.75 | Add to Cart |
| 4000 SERIES | 115V AC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-100', 1"-50' | 21 | 16 | 8.00 | 14.12 | 19.00 | 26.75 | 18.12 | 9.88 | 64 | 98 | HR-E4024-17-18-115V | $1,429.75 | Add to Cart |
| 4000 SERIES | 115V AC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-150', 1"-75' | 27 | 22 | 14.12 | 19.00 | 19.00 | 32.75 | 18.12 | 9.88 | 75 | 110 | HR-E4030-17-18-115V | $1,429.75 | Add to Cart |
| 4000 SERIES | 115V AC ELECT | 1" FEM NPT | 1" FEM NPT | 3/4"-200', 1"-100' | 15 | 30 | 8.00 | 14.12 | 19.00 | 40.75 | 18.12 | 9.88 | 88 | HR-E4038-17-18-115V | $1,429.75 | Add to Cart |
