SB1 STAINLESS SINGLE BRAIDED METAL HOSE

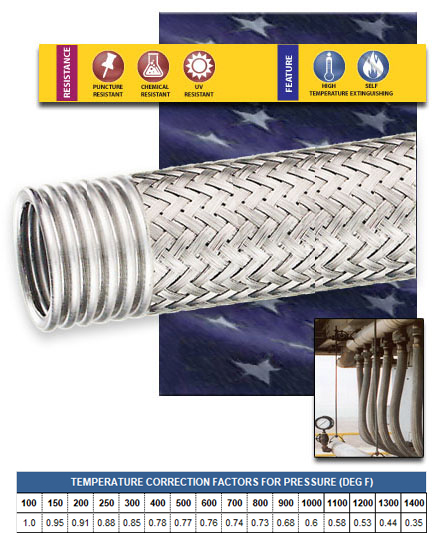

The Model SB1 is a corrugated stainless steel metal hose with a single stainless steel braid.  It has large pressure and temperature capacities and is commonly provided with any type of carbon or stainless steel fittings, welded to the hose.

It is resistant to bursting, cracking, and crushing even under accidental exposure to flame, while being quite flexible and resistant to vibration. It is available in a wide range of sizes and materials.  Applications include a large variety of liquid and gas transfer throughout industry.

Also available in a double braid (SB2 metal hose) for higher pressures, and in an extra flexible and non-braided stay-put design (contact factory).

Temperature range is -320F to 1500F.


Related Products
Related Product
 Related Product
SB2 BRAIDED HOSE SB3 BRAIDED HOSE
Related Product
 Related Product
HOT HOSE SLEEVE BRAIDED CONNECTOR
  Price & Purchase Configurator
Choose details to price,
then add to your cart!

PDF Submittal Sheet

Dia
(in)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt/Ft
(lbs)
1/4  2116  30  5  .28
3/8  1501  30  5.5  .27
1/2  1075  30  6  .32
3/4  792  30  8  .73
1  571  30  9  .91
1 1/4  531  30  10.5  1.12
1 1/2  472  30  12  1.56
2  516  30  15  1.66
2 1/2  387  30  20  2.75
3  316  30  22  3.7
3 1/2  297  30  24  2.9
4  232  30  27  4.6
5  191  30  31  6.1
6  165  30  36  7.4
8  234  30  40  12
10  230  30  50  19.8
12  161  30  60  22.8
14  119  30  70  23.4
16  110  30  74  24.6
18  85  30  82  26.6
20  65  30  90  28.2
22  50  30  98  29.9
24  45  30  104  31.4
