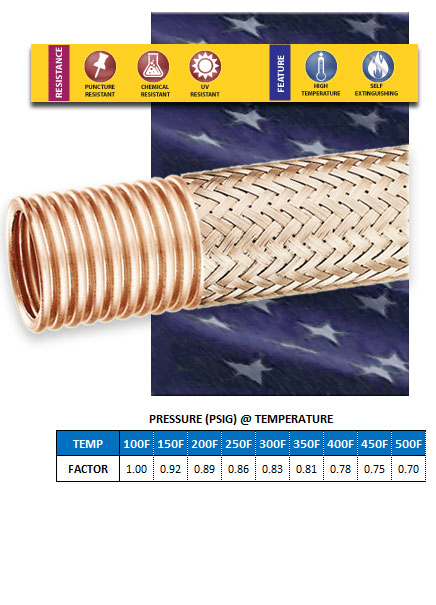

Overview: The Model BB1 is a corrugated bronze hose with a single bronze braid. The BB2 is double braided for a higher pressure rating.
Features:
- Available with a wide variety of copper fittings.including thread and sweat ends.
- Resistant to failure even under accidental exposure to flame.
- Quite flexible and resistant to vibration.
Applications:
- High Temperature and Pressure Applications in Copper Pipe Systems
- Wide Variety of Industrial Applications
Temperature: -50F to 450F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
Dia (in)
|
Pres (psi)
|
Pres Sngl Braid (psi)
|
Pres Dbl Braid (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
---|---|---|---|---|---|---|---|
1/4 | 1125 | 1125 | 1687 | 29 | 3 1/2 | 0.28 | 2 |
3/8 | 875 | 875 | 1312 | 29 | 6 | 0.28 | 2 |
1/2 | 725 | 725 | 1087 | 29 | 6 1/2 | 0.32 | 2 |
3/4 | 625 | 625 | 937 | 29 | 7 | 0.73 | 2 |
1 | 425 | 425 | 637 | 29 | 8 | 0.91 | 2 |
1 1/4 | 425 | 425 | 637 | 29 | 9 | 1.12 | 2 |
1 1/2 | 350 | 350 | 525 | 29 | 10 | 1.56 | 2 |
2 | 275 | 275 | 412 | 29 | 11 | 1.66 | 2 |
2 1/2 | 225 | 225 | 337 | 29 | 16 | 2.75 | 5 |
3 | 188 | 188 | 281 | 29 | 20 | 3.70 | 2 |
