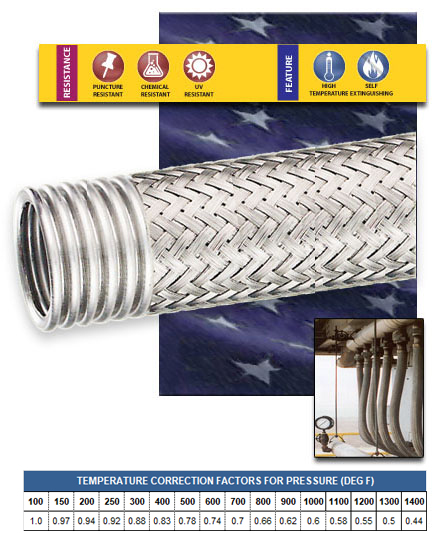

Overview: The Model SB3 is a quality corrugated stainless steel braided metal hose with an exceptionally high pressure rating and good bending. For standard SB3 Models, special double braiding is used up to and including 3 inch diameters, and special triple braiding is used above 3 inches. Also available above 3" with a special double braid (not listed below). Provided with special design 316SS inner hose. 1/4" to 12" diameters.
Features:
- Very high pressures, with excellent bending from close pitch corrugations.
- Available with a wide variety of carbon or stainless steel fittings that are welded to the hose.
- Resistant to failure even under accidental exposure to flame.
- Quite flexible and resistant to vibration.
Applications:
- Very High Pressure Industrial Applications Needing Good Bending, 1/4" to 12"
- Very High Pressure Industrial Applications, 6" to 12"
Temperature: -320F to 850F
Price & Purchase Configurator not available
scroll to see more products
Dia (in)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Bend R - Dynamic (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
---|---|---|---|---|---|---|
1/4 | 5320 | 29 | 1 | 5 | 0.40 | 8 |
3/8 | 3925 | 29 | 1 1/8 | 5 1/2 | 0.52 | 6 |
1/2 | 3680 | 29 | 1 1/2 | 7 1/2 | 0.76 | 6 |
3/4 | 3555 | 29 | 2 1/8 | 8 1/2 | 1.60 | 6 |
1 | 2810 | 29 | 2 3/4 | 10 | 2.00 | 6 |
1 1/4 | 2500 | 29 | 3 3/4 | 11 1/2 | 2.90 | 6 |
1 1/2 | 2220 | 29 | 5 | 13 | 3.60 | 6 |
2 | 1680 | 29 | 6 3/4 | 15 | 4.60 | 6 |
3 | 1475 | 29 | 9 | 21 | 7.30 | 6 |
4 | 1225 | 29 | 11 1/2 | 27 | 13.80 | 6 |
5 | 1200 | 29 | 14 | 32 | 16.80 | 6 |
6 | 950 | 29 | 17 | 37 | 22.20 | 6 |
8 | 875 | 29 | 22 | 46 | 34.40 | 6 |
10 | 750 | 29 | 26 | 56 | 45.40 | 6 |
12 | 525 | 29 | 32 | 62 | 50.40 | 6 |
