TD8 FLAME RETARDANT AIR VENT HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

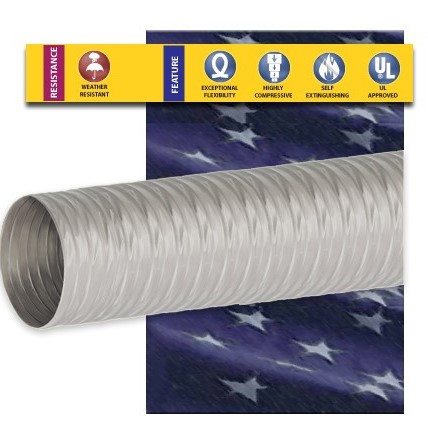

Overview: The Model TD8 is an economical air ventilation, fume removal flame retardant hose with vinyl coated woven fiberglass cover permanently bonded to a PVC coated spring steel wire helix. This hose meets UL 181 class flammability ratings and NFPA 90A-90B fire code.  It is also available insulated. For similar hose applications, see the TD14 hose, which has an external metal clamp providing additional flexibility. It is normally available in 25 foot lengths, and a multiple piece case quantity purchase is required. 2" to 14" diameters.

Features:

  • This hose meets UL 181 class flammability ratings and NFPA 90A-90B fire code
  • Economical

Applications:

  • Low Volume Air Transfer
  • Dry Cleaning Equipment
  • Air Intake and Exhaust Ducts
  • Heating and Cooling Systems
  • Dust

Temperature0F to 250F



scroll to see more products
Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
NoteProduct NoPrice
($)

3 25 0.6 1 3 Price for Case Qty (6) HOSE-TD8 $324.00
4 25 0.6 1 4 Price for Case Qty (8) HOSE-TD8 $530.00
5 25 0.6 1 5 Price for Case Qty (8) HOSE-TD8 $660.00
6 25 0.6 1 6 Price for Case Qty (4) HOSE-TD8 $395.00
7 25 0.6 1 7 Price for Case Qty (2) HOSE-TD8 $231.00
8 25 0.6 1 8 Price for Case Qty (2) HOSE-TD8 $270.00
9 25 0.6 1 9 Price for Case Qty (2) HOSE-TD8 $300.00
10 25 0.6 1 10 Price for Case Qty (2) HOSE-TD8 $335.00
12 25 0.6 1 12 Price for Case Qty (2) HOSE-TD8 $406.00
14 25 0.6 1 14 Price for Case Qty (1) HOSE-TD8 $238.00
