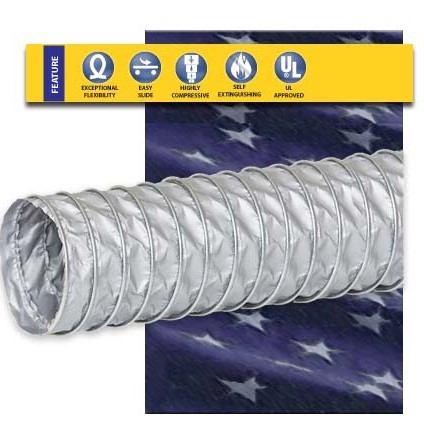

Overview: The Model TD14 is a quality single ply silver PVC coated fiberglass fabric hose crimped to a metal clip. It is ideal for HVAC applications, with all flame retardant materials. The hose is extremely flexible, and the metal strip acts as a protective wearstrip. Standard diameter sizes are 4" to 14", but other sizes are available on request. Standard lengths are 25 feet.
Features:
- Flame Retardant to UL 181, Class 1, and UL 94V-0
Applications:
- HVAC
- A/C Ventilation, Heaters
- Smoke Ejectors
- Many Fume and Ventilation Uses
Temperature: 20F to 250F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 4 | 25 | 9.0 | 4.0 | 3.0 | 12 | HOSE-TD14-25-0400 | $157.45 | 7 | Add to Cart |
| 5 | 25 | 5.5 | 3.5 | 3.5 | 14 | HOSE-TD14-25-0500 | $194.58 | 7 | Add to Cart |
| 6 | 25 | 4.5 | 3.2 | 4.0 | 16 | HOSE-TD14-25-0600 | $210.32 | 7 | Add to Cart |
| 7 | 25 | 4.0 | 3.0 | 5.0 | 18 | HOSE-TD14-25-0700 | $245.34 | 7 | Add to Cart |
| 8 | 25 | 3.8 | 2.8 | 5.5 | 20 | HOSE-TD14-25-0800 | $282.00 | 7 | Add to Cart |
| 9 | 25 | 3.2 | 2.5 | 6.3 | 23 | HOSE-TD14-25-0900 | $315.13 | 7 | Add to Cart |
| 10 | 25 | 3.0 | 2.0 | 7.0 | 25 | HOSE-TD14-25-1000 | $350.15 | 7 | Add to Cart |
| 12 | 25 | 2.5 | 1.8 | 8.5 | 29 | HOSE-TD14-25-1200 | $418.30 | 7 | Add to Cart |
| 14 | 25 | 2.0 | 1.5 | 10.0 | 32 | HOSE-TD14-25-1400 | $423.47 | 7 | Add to Cart |
