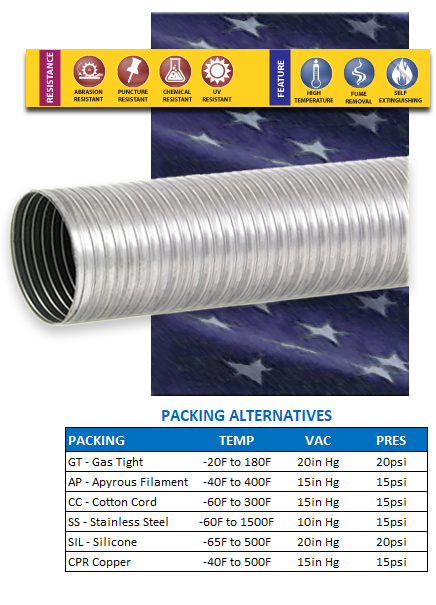

Overview: The Model SI2 is a stripwound interlocked stainless steel hose that contains a packing for pressure tight service, unlike the SI1 hose, which is unpacked. The edge of metal strip is folded so that the joints interlock. There is 150.00 minimum purchase for this hose.
Features:
- Relatively lightweight and tough.
- Suitable for high temperatures.
- Can be supplied with fittings welded to the hose, or used with a special Lap Exhaust Clamp.
Applications:
- Fume and Engine Exhaust in Enclosed Spaces
- Various Metal Hose Applications
Temperature: -50F to 1500F (Packing Dependent)
scroll to see more products
|
Dia (in)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|
| 1 1/2 | 9.0 | 0.51 | 6 |
| 1 3/4 | 12.0 | 0.82 | 6 |
| 2 | 15.0 | 0.95 | 6 |
| 2 1/4 | 16.0 | 1.15 | 6 |
| 2 1/2 | 18.0 | 1.22 | 6 |
| 2 3/4 | 10.7 | 1.67 | 6 |
| 3 | 21.0 | 2.15 | 8 |
| 3 1/2 | 26.0 | 2.35 | 8 |
| 4 | 30.0 | 2.65 | 8 |
| 4 1/2 | 33.0 | 2.95 | 8 |
| 5 | 35.0 | 3.05 | 8 |
| 6 | 43.0 | 3.55 | 8 |
| 7 | 52.0 | 4.15 | 8 |
| 8 | 60.0 | 4.55 | 8 |
| 10 | 70.0 | 7.15 | 8 |
| 12 | 85.0 | 7.65 | 10 |
| 14 | 120.0 | 10.55 | 10 |
| 16 | 56.0 | 10.60 | 10 |
