RP1 PETROLEUM HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

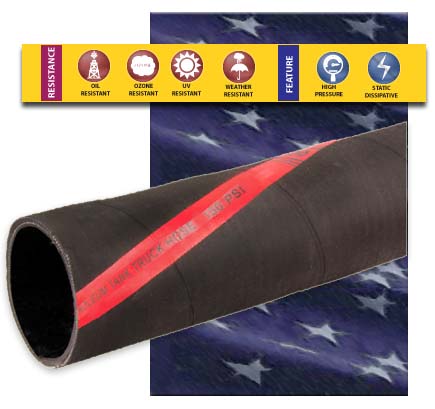

Overview: The RP1 petroleum hose is the industry standard for suction ready in-plant hose, tank truck hose, and general transfer of petroleum products at 150psi pressures. 1-1/4" to 4" diameters.

Features:

  • Handles Gasoline, Oil, and Refined Petroleum products to 55% aromatic content

Applications

  • Tank Trucks
  • Petroleum Plants
  • Petroleum Suction Service

Temperature -40F to 200F.

scroll to see more products
Dia
(in)
Pres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
1 1/4 150 4 .70
1 1/2 150 6 .84
2 150 8 1.10
2 1/2 150 10 1.48
3 150 13 1.79
4 150 19 2.64
