RP1C PETROLEUM CORRUGATED HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

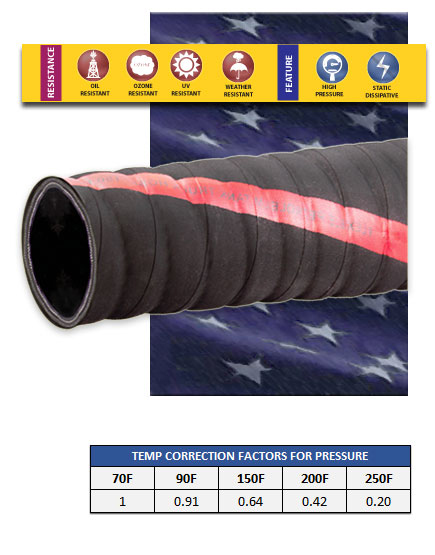

Overview: The Model RP1C Petroleum Hose is similar to the RP1, but with a corrugated cover for extra flexibility.  This hose is suction ready as a tank truck hose, general transfer gasoline hose, oil refined petroleum hose at 150psi pressures. Nitrile tube and neoprene cover.

Features:

  • Handles Gasoline, Oil, and Refined Petroleum products to 55% aromatic content
  • Corrugated Cover for Flexibility
  • Diameters up to 8"

Applications

  • Tank Trucks
  • Petroleum Plants
  • Petroleum Suction Service up to 8" Diameters

Temperature-40F to 180F

scroll to see more products
Dia
(in)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt/Ft
(lbs)
1 1/2 150 30 1.5 .77
2 150 30 2 1.02
2 1/2 150 30 2.5 1.31
3 150 30 3 1.60
4 150 30 4 2.55
5 150 30 6 3.86
6 150 30 8 4.17
8 150 30 10 6.02
