RN2 CxE LIGHTWEIGHT RUBBER SUCTION HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

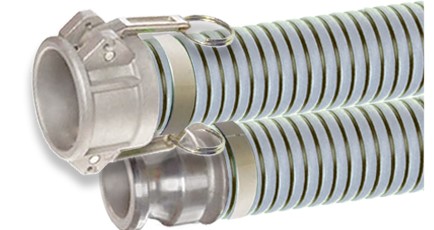

OverviewThe Model RN2 is an EPDM rubber suction hose with a polyethylene external helix that provides for easy dragging, and it has a smooth bore.

Here it is made available for quick purchase with popular aluminum CxE (male x female) cam & groove fittings for 1" to 6" diameters in 20ft lengths. Also avaialble here with NPSH MxF Swivel fittings.

Features:

  • Lightweight Compared to Other Rubber Suction Hoses
  • Easy to Drag
  • Economical
  • Smooth Bore

Applications

  • For Many  Industrial and Construction Suction  Applications
  • Liquid Waste, Septic Handling, Sewage, Agricultural, and Marine Applications

Temperature:  -40F to 158F

scroll to see more products
Dia
(in)
Outer Dia
(in)
FittingsPres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
1 1.34 CAM & GRV M X F AL 80 4 .23
1 1/4 1.61 CAM & GRV M X F AL 70 5 .30
1 1/2 1.96 CAM & GRV M X F AL 50 6 .49
2 2.49 CAM & GRV M X F AL 50 9 .69
2 1/2 3.00 CAM & GRV M X F AL 50 11 .91
3 3.60 CAM & GRV M X F AL 50 12 1.21
4 4.69 CAM & GRV M X F AL 45 17 1.83
6 6.86 CAM & GRV M X F AL 35 27 1.83
