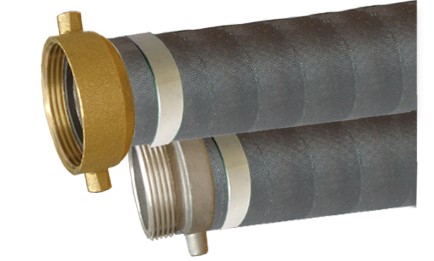

RN1 MxF NPSH RUBBER SUCTION HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

OverviewThe Model RN1 is a quality rubber suction hose designed for rugged industrial and construction applications requiring endurance.

Here it is made available for quick purchase with popular NPSH MxF (male x female swivel) thread fittings for 1" to 6" diameters in 20ft lengths. Also avaialble here with alumuminum CxE cam & groove fittings.

Features:

  • Rugged Design that is Kink Resistant
  • Abrasion Resistant
  • Good in any Weather
  • Good Pressure Ratings

Applications

  • Liquid Suction Applications
  • For for Water and Mild Chemicals, Slurries, Brine,Detergents, Mild Acids, Alkalis, Glycols, Among Many Others

 Temperature-25F to 185F

scroll to see more products
Dia
(in)
Outer Dia
(in)
Lngth-ft
(ft)
FittingsPres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt
(lbs)
Product NoWt/Ft
(lbs)
Price
($)

1 1/2 1-7/8 20 NPSH M X F SW 150 30 7 19 HOSE-RN1AS20MF0150 .85 $141.70 Add to Cart
2 2-7/16 20 NPSH M X F SW 150 30 10 23.20 HOSE-RN1AS20MF0200 1.06 $164.40 Add to Cart
2 1/2 2-7/8 20 NPSH M X F SW 150 30 11 29.20 HOSE-RN1AS20MF0250 1.31 $226.30 Add to Cart
3 3-29/64 20 NPSH M X F SW 150 30 12 37.60 HOSE-RN1AS20MF0300 1.73 $262.50 Add to Cart
4 4-1/2 20 NPSH M X F SW 150 30 14 54 HOSE-RN1AS20MF0400 2.55 $412.00 Add to Cart
6 6-5/8 20 NPSH M X F SW 150 25 19 121 HOSE-RN1AS20MF0600 5.90 $807.00 Add to Cart
