RN1 CxE RUBBER SUCTION HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

OverviewThe Model RN1 is a quality rubber suction hose designed for rugged industrial and construction applications requiring endurance.

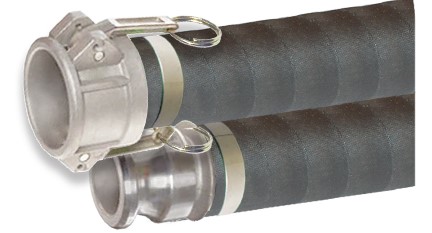

Here it is made available for quick purchase with popular aluminum CxE (male x female) cam & groove fittings for 1-1/2" to 6" diameters in 50ft lengths. Also avaialble here with NPSH MxF Swivel fittings.

Features:

  • Rugged Design that is Kink Resistant
  • Abrasion Resistant
  • Good in any Weather
  • Good Pressure Ratings

Applications

  • Liquid Suction Applications
  • For for Water and Mild Chemicals, Slurries, Brine,Detergents, Mild Acids, Alkalis, Glycols, Among Many Others

 Temperature-25F to 185F

scroll to see more products
Dia
(in)
Outer Dia
(in)
FittingsPres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt/Ft
(lbs)
1 1-19/64 CAM & GRV M X F AL 150 30 4 .50
1 1/4 1-5/8 CAM & GRV M X F AL 150 30 5 .62
1 1/2 1-7/8 CAM & GRV M X F AL 150 30 7 .85
2 2-7/16 CAM & GRV M X F AL 150 30 10 1.06
2 1/2 2-7/8 CAM & GRV M X F AL 150 30 11 1.31
3 3-29/64 CAM & GRV M X F AL 150 30 12 1.73
4 4-1/2 CAM & GRV M X F AL 150 30 14 2.55
6 6-5/8 CAM & GRV M X F AL 150 25 19 5.90
8 8-5/6 CAM & GRV M X F AL 150 25 20 7.90
