RUBBER PIPE FLEX CONNECTOR

Hose By Material

Hose By Application

Select a Hose

Accessories

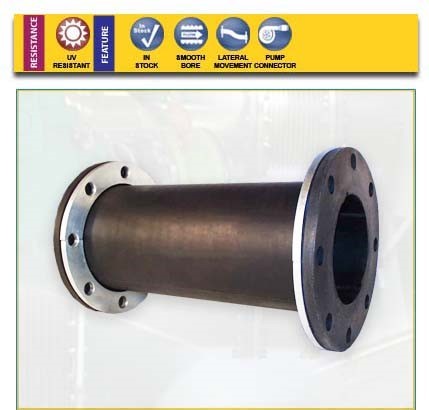

OVERVIEW: Rubber Pipe Flexible Connectors are used primarily to suppress noise and vibration from pumps, chillers and other equipment. They inhibit electrolysis, water hammer, and corrosion, and will accommodate limited amounts of movement. Backing rings are used with the integral rubber flanges for superior sealing. Other diameters, lengths, and flange drill patterns than those shown are available.

FEATURES:

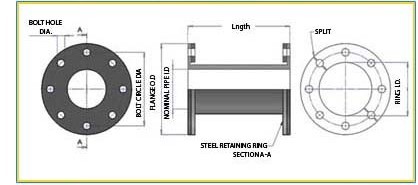

  • Built in rubber flanges with steel backing rings
  • Smooth bore
  • Stocked in standard lengths, with specials avaialble

APPLICATIONS:

  • Equipment vibration elimination
  • Where a smooth bore is preferred for a flexible connection to equipment for misalignment
  • Electolysis prevention

TEMPERATURE:  250° F for EPDM & Butyl, 230°F for Neoprene, 212°F for Nitrile

scroll to see more products
NAMEMTLDIA
(in)
LNGTH
(in)
PRES
(psi)
INLET
(in)
WT
(lbs)
P/NPRICE
($)

FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 2" 12" 150 150# FLANGE 7 400HT020012 $246.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 2 1/2" 12" 150 150# FLANGE 10 400HT025012 $320.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 3" 12" 150 150# FLANGE 12 400HT030012 $357.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 4" 12" 150 150# FLANGE 15 400HT040012 $439.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 5" 12" 150 150# FLANGE 18 400HT050012 $517.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 2" 18" 150 150# FLANGE 9 400HT020018 $363.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 2 1/2" 18" 150 150# FLANGE 12 400HT025018 $407.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 3" 18" 150 150# FLANGE 15 400HT030018 $476.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 4" 18" 150 150# FLANGE 18 400HT040018 $540.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 5" 18" 150 150# FLANGE 22 400HT050018 $653.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 6" 18" 150 150# FLANGE 25 400HT060018 $713.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 8" 18" 150 150# FLANGE 34 400HT080018 $760.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 10" 18" 150 150# FLANGE 58 400HT100018 $1059.00 Add to Cart
FLANGED RBR CONNECTOR BUTYL / PLATED CS RT 12" 18" 150 150# FLANGE 78 400HT120018 $1303.00 Add to Cart
