OVERVIEW: The Bellows Connector metal expansion joint is kept stocked with 150# C/S flanges and tie rods. Although it only comes in one configuration, it is an economical choice, and appropriate for many applications.

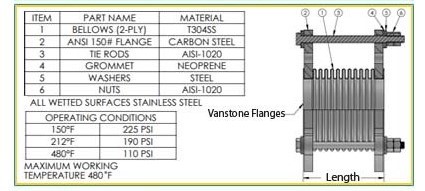

It uses vanstone 150# flanges, keeping all the wetted parts stainless steel, and has tie rods standard. Any special can also be made.
FEATURES:
- Kept in stock
- Economical
- Comes standard with tie rods and 150# CS vanstoned flanges that allow all stainless steel wetted parts
APPLICATIONS:
- Flexible equipment connection when higher temperatures and compression movement is required
- Thermal expansion of piping
TEMPERATURE: to 480°F
scroll to see more products
| NAME |
DIA (in)
|
LNGTH (in)
|
PRES (psi)
|
INLET (in)
|
NOTE |
WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 2X6 BELLOW EXP JNT 150#FF FLGS | 2 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 12 | BCON0200 | $377.00 | Add to Cart |
| 2.5X6 BELLOW EXPJNT 150#FF FLG | 2 1/2 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 16 | BCON0250 | $493.00 | Add to Cart |
| 3X6 BELLOWS EXPJNT 150#FF FLGS | 3 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 18 | BCON0300 | $681.00 | Add to Cart |
| 4X6 BELLOWS EXPJNT 150#FF FLGS | 4 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 28 | BCON0400 | $847.00 | Add to Cart |
| 5X6 BELLOWS EXPJNT 150#FF FLGS | 5 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 34 | BCON0500 | $1,021.00 | Add to Cart |
| 6X6 BELLOWS EXPJNT 150#FF FLGS | 6 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 43 | BCON0600 | $1,222.00 | Add to Cart |
| 8X6 BELLOWS EXPJNT 150#FF FLGS | 8 | 6 | 150 | 150# FLTG FLANGES | 1" COMPR | 63 | BCON0800 | $1,783.00 | Add to Cart |
| 10X8 BELLOW EXPJNT 150#FF FLGS | 10 | 8 | 150 | 150# FLTG FLANGES | 1.4" COMPR | 93 | BCON1000 | $2,217.00 | Add to Cart |
| 12X8 BELLOW EXPJNT 150#FF FLGS | 12 | 8 | 150 | 150# FLTG FLANGES | 1.4" COMPR | 120 | BCON1200 | $3,001.00 | Add to Cart |
| 14X8 BELLOW EXPJNT 150#FF FLGS | 14 | 8 | 150 | 150# FLTG FLANGES | 1.4" COMPR | 180 | BCON1400 | $3,561.00 | Add to Cart |
