SI1 INTERLOCKED STAINLESS,UNPACKED HOSE

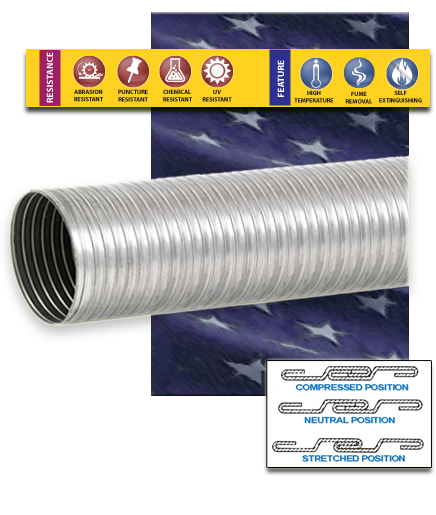

The Model SI1 is a stripwound interlocked stainless steel hose.  (For a packed hose to retain pressure, see the SI2 hose).  The edge of metal strip is folded so that the joints interlock.  It is relatively lightweight but tough, and is resistant to high temperatures.

Applications include bulk material handling, fume and dust collection, engine exhaust, and many others.  This metal hose is also available in galvanized steel, bronze, and monel.  Commonly provided with any style of carbon or stainless steel fittings.

Also available in a galvanized material as a value option.

Temperature range is -50F to 1200F
Related Products
Related Product
 Related Product
LAP EXHAUST CLAMP HOT HOSE SLEEVE
Related Product
SI2 INTERLOCK HOSE
  Price & Purchase Configurator
Choose details to price,
then add to your cart!

PDF Submittal Sheet

Dia
(in)
 Bend R
(in)
 Wt/Ft
(lbs)
1  6.5  0.34
1 1/8  7  0.38
1 1/4  7 1/2  0.41
1 3/8  8  0.46
1 1/2  9  0.51
1 3/4  12  0.82
1 7/8  12.5  0.86
2  15  0.95
2 1/4  16  1.15
2 1/2  18  1.22
3  21  2.15
3 1/2  26  2.35
4  30  2.65
4 1/2  33  2.95
5  35  3.05
5 1/2  40  3.25
6  43  3.55
7  52  4.15
8  60  4.55
9  66  6.75
10  70  7.15
11  77  7.45
12  85  7.65
14  120  10.55
16  63  17
