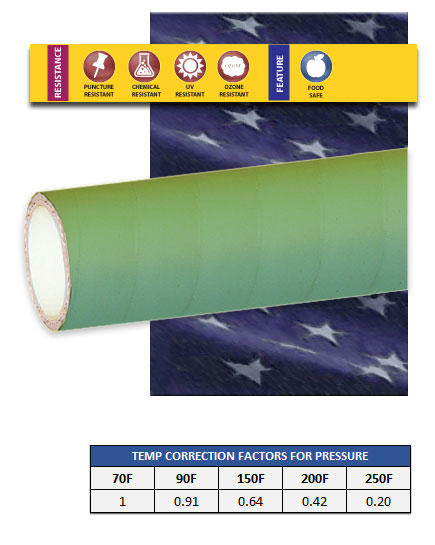

RH1 RUBBER MATERIAL HANDLING HOSE





The Model RH1 Rubber Material Hose is a heavier weight rubber material handling hose designed to transfer a variety of slurries and dry highly abrasive materials throughout industry.

It uses an FDA Grade, thick, smooth bore natural rubber tube for abrasion and age resistance, with a steel helix wire, and a high grade cover that resists scuffs and cuts. The 5" - 12" diameters have extra kink resistance with a corrugated cover. Commonly provided with cam and groove, flanged, and other fittings.

Temperature range is -20F to 190F.
Related Products
Related Product
 Related Product
DRY BREAK FITTINGS HOSE REELS
  Price & Purchase Configurator
Choose details to price,
then add to your cart!

PDF Submittal Sheet

Dia
(in)
 Outer Dia
(in)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt/Ft
(lbs)
2  2 27/32  100  30  5  2.60
3  3 7/8  100  30  10.5  3.62
4  4 15/16  100  30  12  5.57
5  5 15/16  75  28  13.5  7.00
6  6 59/64  50  25  15  7.25
8  9 3/32  50  20  17  10.80
10  11 5/16  50  20  19  15.10
12  13 7/16  50  20  25  18.20
