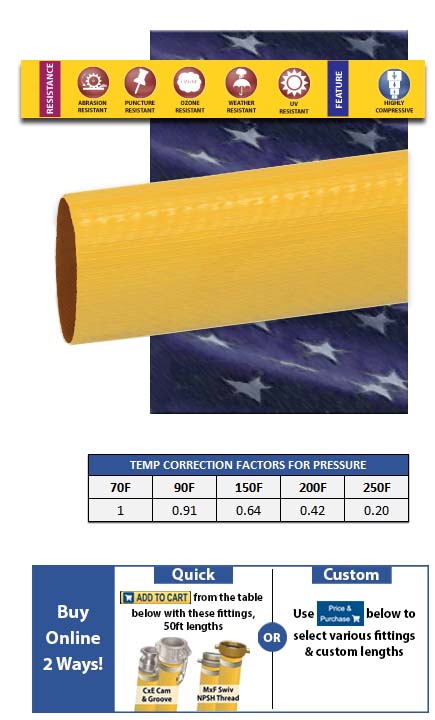

Overview: The RD4 model is a ribbed yellow nitrile/PVC oil resistant discharge lay-flat hose. It is lighter and less bulky than most rubber discharge hoses, and resists abrasion and weathering. Used in many varied applications, with limited oil and chemical use. Resists kinking and stretching while in service.
The most common fitting and length combinations can be purchased below: 1-1/2" to 6" sizes in 50ft lengths with aluminum cam & groove fittings or aluminum M x F with brass swivel NPSH threads. Other fittings and lengths can be configured and purchased with our Price & Purchase feature below.
Features:
- Soft wall is similar to a lay-flat hose, but with increased abraision resistance and tensile strength.
- Flattens when rolled up more compactly than other rubber discharge hoses
- Top Grade Construction resists twisting for easier recoiling
Applications:
- Rugged Industrial and Construction Discharge Applications where Suction is not Required
- Water, as well as Limited Oil and Mild Chemicals
- Irrigation, Agriculture, and Industrial Washdown
Temperature: -20F to 210F.
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 50 | NPSH M X F SW | 150 | 16 | HOSE-RD4AS50MF0150 | 0.26 | $289.76 | 3 | Add to Cart |
| 1 1/2 | 50 | M X F AL CAM & GRV | 150 | 16 | HOSE-RD4AS50CE0150 | 0.26 | $294.66 | 3 | Add to Cart |
| 2 | 50 | NPSH M X F SW | 150 | 21 | HOSE-RD4AS50MF0200 | 0.35 | $352.56 | 3 | Add to Cart |
| 2 | 50 | M X F AL CAM & GRV | 150 | 21 | HOSE-RD4AS50CE0200 | 0.35 | $354.64 | 3 | Add to Cart |
| 2 1/2 | 50 | NPSH M X F ASSY | 150 | 28 | HOSE-RD4AS50MF0250 | 0.47 | $415.38 | 3 | Add to Cart |
| 2 1/2 | 50 | M X F AL CAM & GRV | 150 | 28 | HOSE-RD4AS50CE0250 | 0.47 | $413.72 | 3 | Add to Cart |
| 3 | 50 | NPSH M X F SW | 150 | 37 | HOSE-RD4AS50MF0300 | 0.65 | $542.36 | 3 | Add to Cart |
| 3 | 50 | M X F AL CAM & GRV | 150 | 37 | HOSE-RD4AS50CE0300 | 0.65 | $540.80 | 3 | Add to Cart |
| 4 | 50 | MPSH M X F SW | 150 | 47 | HOSE-RD4AS50MF0400 | 0.85 | $789.26 | 3 | Add to Cart |
| 4 | 50 | M X F AL CAM & GRV | 150 | 47 | HOSE-RD4AS50CE0400 | 0.85 | $791.64 | 3 | Add to Cart |
| 6 | 50 | NPSH M X F SW | 150 | 85 | HOSE-RD4AS50MF0600 | 1.60 | $1,310.66 | 7 | Add to Cart |
| 6 | 50 | M X F AL CAM & GRV | 150 | 85 | HOSE-RD4AS50CE0600 | 1.60 | $1,310.66 | 7 | Add to Cart |
