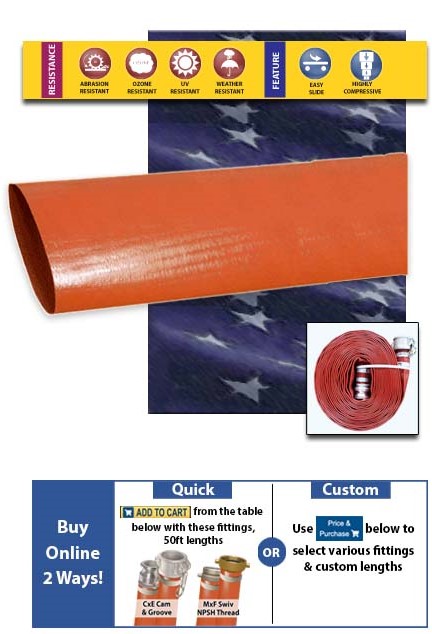

Overview: The Model PD2 is a red PVC lay-flat hose for water discharge. Reinforcement includes spiral plies and longitudinal synthetic cords for burst resistance.
The most common fitting and length combinations can be purchased below: 1-1/2" to 6" sizes in 50ft lengths with aluminum cam & groove fittings or aluminum M x F with brass swivel NPSH threads. Other fittings and any lengths can be configured and purchased with our Price & Purchase feature below. Contact factory for other sizes.
Features:
- Rolls up Compactly for Storage
- Higher Pressure than Some Other Layflat Hoses
- Resists Kinkning and Twisting
Applications:
- Water Discharge for Industrial and Construction
Temperature: 5F to 130F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Length (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 50 | 50 | NPSH M X F SW | 150 | 17 | HOSE-PD2AS50MF0150 | 0.28 | $146.60 | 2 | Add to Cart |
| 2 | 50 | 50 | NPSH M X F SW | 150 | 21 | HOSE-PD2AS50MF0200 | 0.34 | $175.10 | 2 | Add to Cart |
| 2 1/2 | 50 | 50 | NPSH M X F SW | 150 | 23 | HOSE-PD2AS50MF0250 | 0.40 | $299.10 | 2 | Add to Cart |
| 3 | 50 | 50 | NPSH M X F SW | 150 | 31 | HOSE-PD2AS50MF0300 | 0.55 | $284.40 | 2 | Add to Cart |
| 4 | 50 | 50 | NPSH M X F SW | 150 | 47 | HOSE-PD2AS50MF0400 | 0.85 | $445.70 | 2 | Add to Cart |
| 6 | 50 | 50 | NPSH M X F SW | 150 | 71 | HOSE-PD2AS50MF0600 | 1.34 | $760.30 | 7 | Add to Cart |
| 1 1/2 | 50 | 50 | M X F AL CAM & GRV | 150 | 17 | HOSE-PD2AS50CE0150 | 0.28 | $155.90 | 2 | Add to Cart |
| 2 | 50 | 50 | M X F AL CAM & GRV | 150 | 21 | HOSE-PD2AS50CE0200 | 0.34 | $182.70 | 2 | Add to Cart |
| 2 1/2 | 50 | 50 | M X F AL CAM & GRV | 150 | 23 | HOSE-PD2AS50CE0250 | 0.40 | $303.78 | 2 | Add to Cart |
| 3 | 50 | 50 | M X F AL CAM & GRV | 150 | 31 | HOSE-PD2AS50CE0300 | 0.55 | $295.10 | 2 | Add to Cart |
| 4 | 50 | 50 | M X F AL CAM & GRV | 150 | 47 | HOSE-PD2AS50CE0400 | 0.85 | $454.40 | 2 | Add to Cart |
| 6 | 50 | 50 | M X F AL CAM & GRV | 150 | 71 | HOSE-PD2AS50CE0600 | 1.34 | $774.00 | 7 | Add to Cart |
