VB4 PORTABLE HEATER DUCT HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

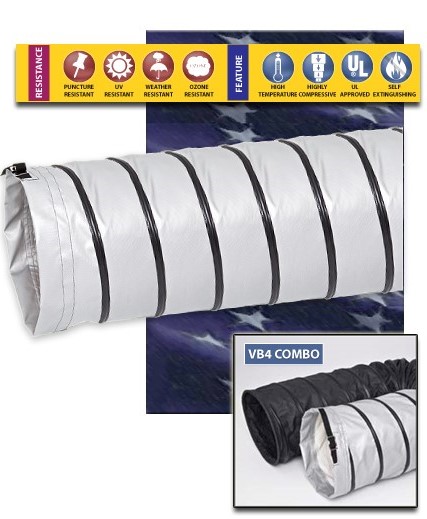

Overview: Heavy duty silver with black wearstrip silicone coated fiberglass fabric hose reinforced with a spring steel wire helix and external wearstrip. Light weight duct designed for higher temperature portable/temporary heating and dehumidification applications. 25ft lengths are standard and can be purchased directly below. Special lengths are possible. Available with second hose for VB4-Combo that handles the highest temperatures near heaters with the VB4 (contact factory). 12" to 24" diameters. This hose is made to order and has a 3 week lead time.

Features:

  • High Temperatures to 550F
  • Low Temperatures to -50F with High Flexibility
  • High Strength Sewn Construction
  • Great Puncture and Wear Resistance
  • Moisture Resistant and UV Stabilized
  • High Compression Ratio of 6:1
  • Flame Retardant to UL 94V-0

Applications:

  • Portable Heating and Dehumidification
  • Cold Outdoor Air Handling
  • Drying Systems

Temperature: -50F to 550F



scroll to see more products
Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Bend R
(in)
Wt
(lbs)
Product NoPrice
($)

12 25 8.5 9 25 HOSE-VB4-25-1200 $812.00 Add to Cart
14 25 7 10 28 HOSE-VB4-25-1400 $911.00 Add to Cart
16 25 6 11 30 HOSE-VB4-25-1600 $1039.00 Add to Cart
18 25 5 12 35 HOSE-VB4-25-1800 $1166.00 Add to Cart
20 25 4.5 13 38 HOSE-VB4-25-2000 $1292.00 Add to Cart
24 25 3 15.5 43 HOSE-VB4-25-2400 $1571.00 Add to Cart
