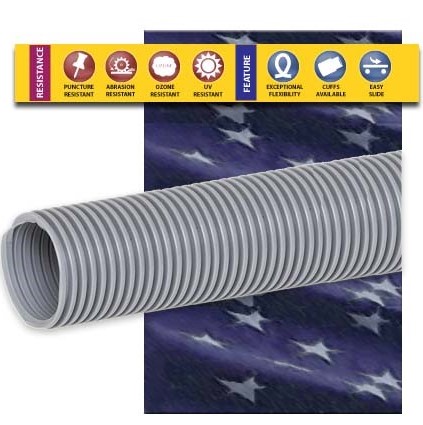

Overview: The PV3 is a light weight polyethylene copolymer vacuum hose reinforced with an integral polyethylene helix. Available with screw on cuffs. 1/4" to 2" diameters. A full vacuum can not be achieved if operating temperature exceeds 72F.
Features:
- Flexible Even at Low Temperatures
- Economical
- Exceptional External Abrasion Resistance and Crush Resistance
- Smooth Interior Assures Efficient Vacuum Air Flow
- Light Weight
Applications:
- Ideal for many commercial and industrial vacuum applications.
Temperature: -40F to 140F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1 1/4 | 25 | 20 | 29 | 2.5 | 5 | HOSE-PV3-25-0125 | $56.00 | 7 | Add to Cart |
| 1 1/4 | 50 | 20 | 29 | 2.5 | 10 | HOSE-PV3-50-0125 | $111.00 | 7 | Add to Cart |
| 1 1/2 | 25 | 18 | 29 | 3.0 | 5 | HOSE-PV3-25-0150 | $67.00 | 7 | Add to Cart |
| 1 1/2 | 50 | 18 | 29 | 3.0 | 10 | HOSE-PV3-50-0150 | $132.00 | 7 | Add to Cart |
| 2 | 25 | 15 | 29 | 3.5 | 8 | HOSE-PV3-25-0200 | $80.00 | 7 | Add to Cart |
| 2 | 50 | 15 | 29 | 3.5 | 16 | HOSE-PV3-50-0200 | $160.00 | 7 | Add to Cart |
