TD9 PVC AIR LIGHT WEIGHT DUCT HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

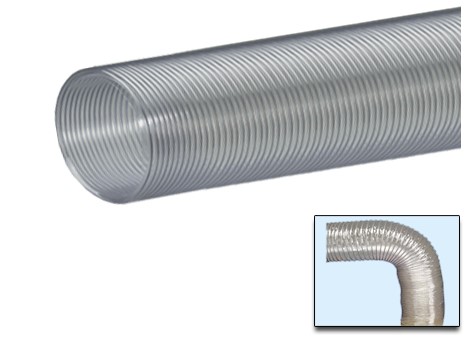

Overview: The Model TD9 is an economical, lightweight, and flexible, clear PVC duct hose, reinforced with a spring steel wire helix. Also available in heavier weights, metric sizes, and lengths other than the 25ft standard that can be purchased below. Normally clamped with right handed bridge clamps. 6" to 12" diameters.

Features:

  • Very Compressible with a 9:1 Compression Ratio
  • Very Economical
  • FDA Acceptable Food Grade Materials

Applications:

  • Lower Positive Pressure Commercial and Industrial Air and Fume Duct Ventilation
  • Air Duct Cleaning

Temperature20F to 160F



scroll to see more products
Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt
(lbs)
Product NoPrice
($)

6 25 4.25 4 3.5 13 HOSE-TD9 $129.00 Add to Cart
8 25 3.2 1.75 4.6 17 HOSE-TD9 $158.00 Add to Cart
10 25 2.6 .9 5.75 21 HOSE-TD9 $225.00 Add to Cart
12 25 2.1 .5 6.9 25 HOSE-TD9 $261.00 Add to Cart
