RSB BREWERY HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

OVERIVEW: The Model RSB Brewery Hose is a heavy duty hose formulated for the suction and transfer of beer, wine, alcohol, and soft drinks. It has a white, smooth bore butyl rubber tube to ensure no effect on odor or taste. Its high working temperatures allows for the sterilization of the hose with steam. White butyl tube and orange EPDM cover. Reinforced with high strength synthetic plies with steel helix.

FEATURES:

  • Can be Sterilized with Steam at 230F for 30 Minutes
  • Meets FDA 21 part.177.2600(e) for Liquid Foods
  • Meets USDA requirements
  • Availble with Factory Coupled Sanitary, or any other Fittings Required

APPLICATIONS:

  • Beer
  • Wine, Alcohol, and Soft Drinks

TEMPERATURE: -40 to 248F

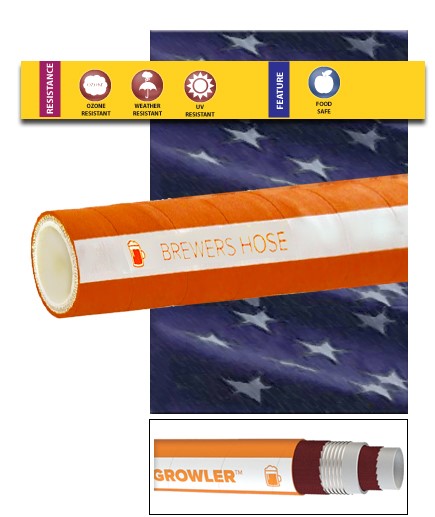

RSB Rubber Brewery Beer Hose

scroll to see more products
Dia
(in)
Outer Dia
(in)
Pres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt/Ft
(lbs)
Lead Time
(days)
3/41-14/64150291.500.483
11-29/64150291.750.583
1 1/41-47/64150293.000.743
1 1/21-62/64150294.000.973
22-33/64150296.001.263
2 1/23-10/64150297.001.84
33-45/64150299.002.20
44-46/641502912.003.06
