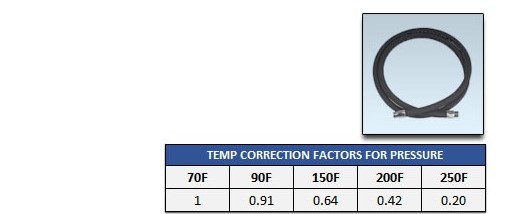

Overview: The Model RP3-AS Gasoline Hose Assemblies are used for petroleum and gas dispensing from pumps desiring a hardwall construction for full flow. It is also widely used for other fuel applications. Sometimes called a curb pump hose, the RP3-AS consists of a RMA Class A, Type C Nitrile tube and high tensile steel wire braid helix reinforcement. The fittings on the assemblies listed below are internally expanded, chrome plated NPT threads (FIX X FIX below). One of the fittings can be provided as a swivel if wanted (FIX X FLT below). Special assemblies and lengths are available up to 500 feet.
Features:
- Long service life
- Kink and Collapse Resistance
- RMA Class A, Type C Nitrile Tube
- Electrically Continuous
- Highly Resistant to Cuts, Abrasion
- Highly Resistant to Sun and Weather
- UL 330 Approved.
- All hoses are 100% pressure tested, and inspected for electrical continuity.
Applications:
- All Unleaded or Leaded Gasoline, Diesel
- Up to E15 Ethanol, and B-20 Biodiesel
Temperature: -40F to 120F
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| 5/8 | 1.00 | 9.0 | MNPT FIX X FIX | 150 | 6 | 4.30 | HOSE-RP3-AS9XX0063 | $110.39 | 3 | Add to Cart |
| 5/8 | 1.00 | 9.0 | MNPT FIX X FLT | 150 | 6 | 4.30 | HOSE-RP3-AS9XL0063 | $121.47 | 3 | Add to Cart |
| 5/8 | 1.00 | 10.0 | MNPT FIX X FIX | 150 | 6 | 4.70 | HOSE-RP3-AS10XX0063 | $118.93 | 3 | Add to Cart |
| 5/8 | 1.00 | 10.0 | MNPT FIX X FLT | 150 | 6 | 4.70 | HOSE-RP3-AS10XL0063 | $130.00 | 3 | Add to Cart |
| 5/8 | 1.00 | 10.5 | MNPT FIX X FIX | 150 | 6 | 4.88 | HOSE-RP3-AS105XX0063 | $123.18 | 3 | Add to Cart |
| 5/8 | 1.00 | 10.5 | MNPT FIX X FLT | 150 | 6 | 4.88 | HOSE-RP3-AS105XL0063 | $134.28 | 3 | Add to Cart |
| 5/8 | 1.00 | 11.0 | MNPT FIX X FIX | 150 | 6 | 5.06 | HOSE-RP3-AS11XX0063 | $127.46 | 3 | Add to Cart |
| 5/8 | 1.00 | 11.0 | MNPT FIX X FLT | 150 | 6 | 5.06 | HOSE-RP3-AS11XL0063 | $138.55 | 3 | Add to Cart |
| 5/8 | 1.00 | 12.0 | MNPT FIX X FIX | 150 | 6 | 5.25 | HOSE-RP3-AS12XX0063 | $135.99 | 3 | Add to Cart |
| 5/8 | 1.00 | 12.0 | MNPT FIX X FLT | 150 | 6 | 5.25 | HOSE-RP3-AS12XL0063 | $147.08 | 3 | Add to Cart |
| 5/8 | 1.00 | 12.5 | MNPT FIX X FIX | 150 | 6 | 5.43 | HOSE-RP3-AS125XX0063 | $140.26 | 3 | Add to Cart |
| 5/8 | 1.00 | 12.5 | MNPT FIX X FLT | 150 | 6 | 5.43 | HOSE-RP3-AS125XL0063 | $151.35 | 3 | Add to Cart |
| 5/8 | 1.00 | 13.0 | MNPT FIX X FIX | 150 | 6 | 5.61 | HOSE-RP3-AS13XX0063 | $144.54 | 3 | Add to Cart |
| 5/8 | 1.00 | 13.0 | MNPT FIX X FLT | 150 | 6 | 5.61 | HOSE-RP3-AS13XL0063 | $155.61 | 3 | Add to Cart |
| 5/8 | 1.00 | 14.0 | MNPT FIX X FIX | 150 | 6 | 6.18 | HOSE-RP3-AS14XX0063 | $153.06 | 3 | Add to Cart |
| 5/8 | 1.00 | 14.0 | MNPT FIX X FLT | 150 | 6 | 6.18 | HOSE-RP3-AS14XL0063 | $164.16 | 3 | Add to Cart |
| 5/8 | 1.00 | 15.0 | MNPT FIX X FIX | 150 | 6 | 6.55 | HOSE-RP3-AS15XX0063 | $161.61 | 3 | Add to Cart |
| 5/8 | 1.00 | 15.0 | MNPT FIX X FLT | 150 | 6 | 6.55 | HOSE-RP3-AS15XL0063 | $172.69 | 3 | Add to Cart |
| 5/8 | 1.00 | 20.0 | MNPT FIX X FIX | 150 | 6 | 8.40 | HOSE-RP3-AS20XX0063 | $204.30 | 3 | Add to Cart |
| 5/8 | 1.00 | 20.0 | MNPT FIX X FLT | 150 | 6 | 8.40 | HOSE-RP3-AS20XL0063 | $215.39 | 3 | Add to Cart |
| 5/8 | 1.00 | 25.0 | MNPT FIX X FIX | 150 | 6 | 10.25 | HOSE-RP3-AS25XX0063 | $246.98 | 3 | Add to Cart |
| 5/8 | 1.00 | 25.0 | MNPT FIX X FLT | 150 | 6 | 10.25 | HOSE-RP3-AS25XL0063 | $258.07 | 3 | Add to Cart |
| 3/4 | 1.13 | 9.0 | MNPT FIX X FIX | 150 | 6 | 5.00 | HOSE-RP3-AS9XX0075 | $127.12 | 3 | Add to Cart |
| 3/4 | 1.13 | 9.0 | MNPT FIX X FLT | 150 | 6 | 5.00 | HOSE-RP3-AS9XL0075 | $141.99 | 3 | Add to Cart |
| 3/4 | 1.13 | 10.0 | MNPT FIX X FIX | 150 | 6 | 5.42 | HOSE-RP3-AS10XX0075 | $136.50 | 3 | Add to Cart |
| 3/4 | 1.13 | 10.0 | MNPT FIX X FLT | 150 | 6 | 5.42 | HOSE-RP3-AS10XL0075 | $151.40 | 3 | Add to Cart |
| 3/4 | 1.13 | 10.5 | MNPT FIX X FIX | 150 | 6 | 5.66 | HOSE-RP3-AS105XX0075 | $141.20 | 3 | Add to Cart |
| 3/4 | 1.13 | 10.5 | MNPT FIX X FLT | 150 | 6 | 5.66 | HOSE-RP3-AS105XL0075 | $156.10 | 3 | Add to Cart |
| 3/4 | 1.13 | 11.0 | MNPT FIX X FIX | 150 | 6 | 5.87 | HOSE-RP3-AS11XX0075 | $145.91 | 3 | Add to Cart |
| 3/4 | 1.13 | 11.0 | MNPT FIX X FLT | 150 | 6 | 5.87 | HOSE-RP3-AS11XL0075 | $160.78 | 3 | Add to Cart |
| 3/4 | 1.13 | 12.0 | MNPT FIX X FIX | 150 | 6 | 6.29 | HOSE-RP3-AS12XX0075 | $155.31 | 3 | Add to Cart |
| 3/4 | 1.13 | 12.0 | MNPT FIX X FLT | 150 | 6 | 6.29 | HOSE-RP3-AS12XL0075 | $170.19 | 3 | Add to Cart |
| 3/4 | 1.13 | 12.5 | MNPT FIX X FIX | 150 | 6 | 6.50 | HOSE-RP3-AS125XX0075 | $159.99 | 3 | Add to Cart |
| 3/4 | 1.13 | 12.5 | MNPT FIX X FLT | 150 | 6 | 6.50 | HOSE-RP3-AS125XL0075 | $174.89 | 3 | Add to Cart |
| 3/4 | 1.13 | 13.0 | MNPT FIX X FIX | 150 | 6 | 6.71 | HOSE-RP3-AS13XX0075 | $164.70 | 3 | Add to Cart |
| 3/4 | 1.13 | 13.0 | MNPT FIX X FLT | 150 | 6 | 6.71 | HOSE-RP3-AS13XL0075 | $179.59 | 3 | Add to Cart |
| 3/4 | 1.13 | 14.0 | MNPT FIX X FIX | 150 | 6 | 7.13 | HOSE-RP3-AS14XX0075 | $174.10 | 3 | Add to Cart |
| 3/4 | 1.13 | 14.0 | MNPT FIX X FLT | 150 | 6 | 7.13 | HOSE-RP3-AS14XL0075 | $188.97 | 3 | Add to Cart |
| 3/4 | 1.13 | 15.0 | MNPT FIX X FIX | 150 | 6 | 7.55 | HOSE-RP3-AS15XX0075 | $183.48 | 3 | Add to Cart |
| 3/4 | 1.13 | 15.0 | MNPT FIX X FLT | 150 | 6 | 7.55 | HOSE-RP3-AS15XL0075 | $198.38 | 3 | Add to Cart |
| 3/4 | 1.13 | 20.0 | MNPT FIX X FIX | 150 | 6 | 9.65 | HOSE-RP3-AS20XX0075 | $230.46 | 3 | Add to Cart |
| 3/4 | 1.13 | 20.0 | MNPT FIX X FLT | 150 | 6 | 9.65 | HOSE-RP3-AS20XL0075 | $245.36 | 3 | Add to Cart |
| 3/4 | 1.13 | 25.0 | MNPT FIX X FIX | 150 | 6 | 11.75 | HOSE-RP3-AS25XX0075 | $277.47 | 3 | Add to Cart |
| 3/4 | 1.13 | 25.0 | MNPT FIX X FLT | 150 | 6 | 11.75 | HOSE-RP3-AS25XL0075 | $292.34 | 3 | Add to Cart |
| 1 | 1.38 | 9.0 | MNPT FIX X FIX | 150 | 6 | 6.63 | HOSE-RP3-AS9XX0100 | $180.65 | 3 | Add to Cart |
| 1 | 1.38 | 9.0 | MNPT FIX X FLT | 150 | 6 | 6.63 | HOSE-RP3-AS9XL0100 | $203.91 | 3 | Add to Cart |
| 1 | 1.38 | 10.0 | MNPT FIX X FIX | 150 | 6 | 7.20 | HOSE-RP3-AS10XX0100 | $192.96 | 3 | Add to Cart |
| 1 | 1.38 | 10.0 | MNPT FIX X FLT | 150 | 6 | 7.20 | HOSE-RP3-AS10XL0100 | $216.22 | 3 | Add to Cart |
| 1 | 1.38 | 10.5 | MNPT FIX X FIX | 150 | 6 | 7.50 | HOSE-RP3-AS105XX0100 | $199.10 | 3 | Add to Cart |
| 1 | 1.38 | 10.5 | MNPT FIX X FLT | 150 | 6 | 7.50 | HOSE-RP3-AS105XL0100 | $222.36 | 3 | Add to Cart |
| 1 | 1.38 | 11.0 | MNPT FIX X FIX | 150 | 6 | 7.78 | HOSE-RP3-AS11XX0100 | $205.24 | 3 | Add to Cart |
| 1 | 1.38 | 11.0 | MNPT FIX X FLT | 150 | 6 | 7.78 | HOSE-RP3-AS11XL0100 | $228.51 | 3 | Add to Cart |
| 1 | 1.38 | 12.0 | MNPT FIX X FIX | 150 | 6 | 8.34 | HOSE-RP3-AS12XX0100 | $217.55 | 3 | Add to Cart |
| 1 | 1.38 | 12.0 | MNPT FIX X FLT | 150 | 6 | 8.34 | HOSE-RP3-AS12XL0100 | $240.81 | 3 | Add to Cart |
| 1 | 1.38 | 12.5 | MNPT FIX X FIX | 150 | 6 | 8.63 | HOSE-RP3-AS125XX0100 | $223.69 | 3 | Add to Cart |
| 1 | 1.38 | 12.5 | MNPT FIX X FLT | 150 | 6 | 8.63 | HOSE-RP3-AS125XL0100 | $246.96 | 3 | Add to Cart |
| 1 | 1.38 | 13.0 | MNPT FIX X FIX | 150 | 6 | 8.91 | HOSE-RP3-AS13XX0100 | $229.83 | 3 | Add to Cart |
| 1 | 1.38 | 13.0 | MNPT FIX X FLT | 150 | 6 | 8.91 | HOSE-RP3-AS13XL0100 | $253.10 | 3 | Add to Cart |
| 1 | 1.38 | 14.0 | MNPT FIX X FIX | 150 | 6 | 9.48 | HOSE-RP3-AS14XX0100 | $242.14 | 3 | Add to Cart |
| 1 | 1.38 | 14.0 | MNPT FIX X FLT | 150 | 6 | 9.48 | HOSE-RP3-AS14XL0100 | $265.41 | 3 | Add to Cart |
| 1 | 1.38 | 15.0 | MNPT FIX X FIX | 150 | 6 | 10.05 | HOSE-RP3-AS15XX0100 | $254.43 | 3 | Add to Cart |
| 1 | 1.38 | 15.0 | MNPT FIX X FLT | 150 | 6 | 10.05 | HOSE-RP3-AS15XL0100 | $277.69 | 3 | Add to Cart |
| 1 | 1.38 | 20.0 | MNPT FIX X FIX | 150 | 6 | 12.90 | HOSE-RP3-AS20XX0100 | $315.92 | 3 | Add to Cart |
| 1 | 1.38 | 20.0 | MNPT FIX X FLT | 150 | 6 | 12.90 | HOSE-RP3-AS20XL0100 | $339.16 | 3 | Add to Cart |
| 1 | 1.38 | 25.0 | MNPT FIX X FIX | 150 | 6 | 15.75 | HOSE-RP3-AS25XX0100 | $377.39 | 3 | Add to Cart |
| 1 | 1.38 | 25.0 | MNPT FIX X FLT | 150 | 6 | 15.75 | HOSE-RP3-AS25XL0100 | $400.65 | 3 | Add to Cart |
