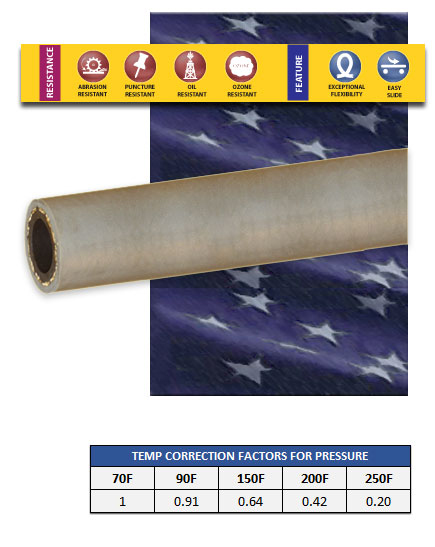

Overview: The Model RO1 is a top quality multipurpose hose for use with convenient push-on fittings up to 3/4" diameters. No special crimping tools are required, which allows the fittings to be inserted easily. It has an oil and heat resistant nitrile tube and neoprene oil resistant cover, and is reinforced with braided fabric laid at the optimal angle for coupling holding capability. All sizes rated for 300psi.

Features:

  • Push-on Fittings Allow for Cutting to Length in the Field with no Crimping Tools
  • Rugged Construction
  • Oil Resistant to RMA Class A with Nitrile Tube
  • Good Flexibility

Applications

  • Wherever a Quality Multipurpose Hose is Needed with Cut-to-Fit Versitility.
  • Industrial Air & Water Applications

Temperature: -40 to 190F

Ro1 Rubber Push On Hose

scroll to see more products
Dia
(in)
Outer Dia
(in)
Pres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
Lead Time
(days)
1/417/323003.250.102
3/811/163004.000.172
1/213/163004 3/40.222
5/829/323005 1/20.272
3/41 1/163006 1/40.372
