Star Shield - Hosecraft USA Industrial Hoses

RM4 RUBBER WIRE REINFORCED HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

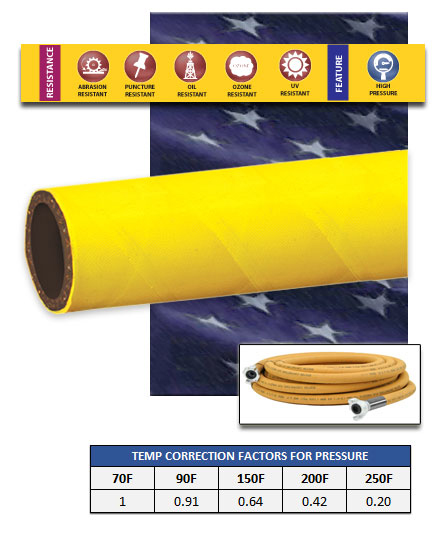

Overview: The Model RM4 is a premium quality heavy duty multipurpose wire reinforced hose recommended for service where a tough and rugged hose is required. This "bull hose" has a bright yellow Neoprene/SBR cover and black Nitrile tube, and is available up to 4" diameters with NPT thread ends, and 6" with no fittings. It is excellent under the most abusive conditions.

Features:

  • Premium Quality Heavy Duty Multipurpose Hose
  • Oil Resistant Nitrile Tube

Applications

  • Multipurpose for the Most Rugged Applications

Temperature -20F to 185F

scroll to see more products
Dia
(in)
Outer Dia
(in)
Pres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
1/2 57/64 600 5.5 .309
3/4 1-9/64 600 8.5 .444
1 1-27/64 600 11 .611
1 1/2 1-31/32 600 16.5 1.068
2 2-33/64 600 22 1.243
2 1/2 3-5/64 600 28 1.411
3 3-5/8 500 34 1.794
4 4-51/64 500 45 3.674
