RD4 MxF RUBBER LAYFLAT DISCHARGE HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

OverviewThe RD4 model is a ribbed yellow nitrile/PVC oil resistant discharge lay-flat hose. It is lighter and less bulky than most rubber discharge hoses, and resists abrasion and weathering. Used in many varied applications, with limited oil and chemical use. Resists kinking and stretching while in service. Available in 50ft increments.

Features:

  • Soft wall is similar to a lay-flat hose, but with increased abraision resistance and tensile strength.
  • Flattens when rolled up more compactly than other rubber discharge hoses
  • Top Grade Construction resists twisting for easier recoiling

 Applications

  • Rugged Industrial and Construction Discharge Applications where Suction is not Required
  • Water, as well as Limited Oil and Mild Chemicals
  • Irrigation, Agriculture, and Industrial Washdown

Temperature-20F to 210F.

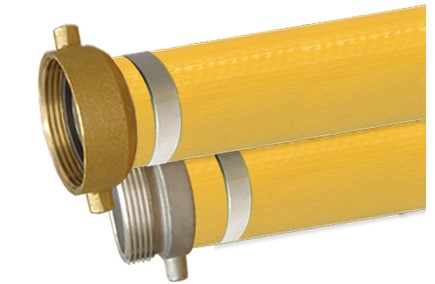

RD4 Nitrile Rubber Layflat Hose MxF Thread

scroll to see more products
Dia
(in)
Lngth-ft
(ft)
Fittings Pres
(psi)
Wt
(lbs)
Product No Wt/Ft
(lbs)
Price
($)
Lead Time
(days)

1 1/250NPSH M X F SW15016HOSE-RD4AS50MF01500.26$289.762 Add to Cart
250NPSH M X F SW15021HOSE-RD4AS50MF02000.35$352.562 Add to Cart
2 1/250NPSH M X F SW15028HOSE-RD4AS50MF02500.47$415.382 Add to Cart
350NPSH M X F SW15037HOSE-RD4AS50MF03000.65$542.362 Add to Cart
450NPSH M X F SW15047HOSE-RD4AS50MF04000.85$789.262 Add to Cart
