PT1 PVC BRAID REINFORCED HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

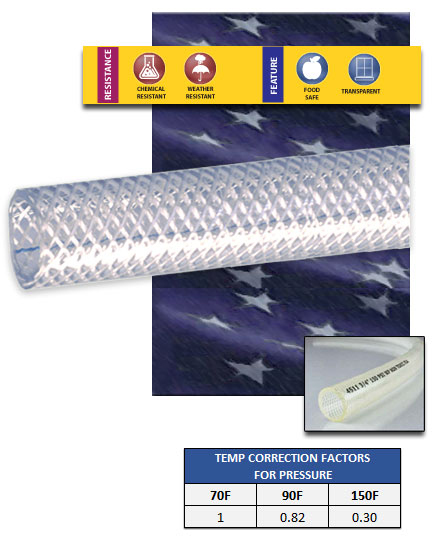

Overview: The Model PT1 is a clear PVC polyester yarn braid reinforced hose tubing with a smooth interior. Available with a wire reinforcement for suction and anti-kink service with the PT5 hose. 1/4" to 2" diameters.

Features:

  • Smooth Finish Provides Excellent Flow Characteristics
  • Does not Impart any Taste or Odor
  • Lightweight and yet Tough
  • Easily Flushed and Cleaned
  • FDA Food grade (NSF-51 approved available for potable water)

Applications:

  • Wide Variety of Weak Chemicals and Gases
  • Food Products and Drinking Water

Temperature0F to 140F

scroll to see more products
Dia
(in)
Outer Dia
(in)
Pres
(psi)
Wt/Ft
(lbs)
1/4 .45 250 .08
5/16 .47 250 .10
3/8 .55 200 .10
1/2 .69 150 .13
5/8 .82 150 .20
3/4 .99 150 .25
1 1.28 125 .30
1 1/4 1.61 100 .45
1 1/2 1.85 70 .64
2 2.39 60 .94
