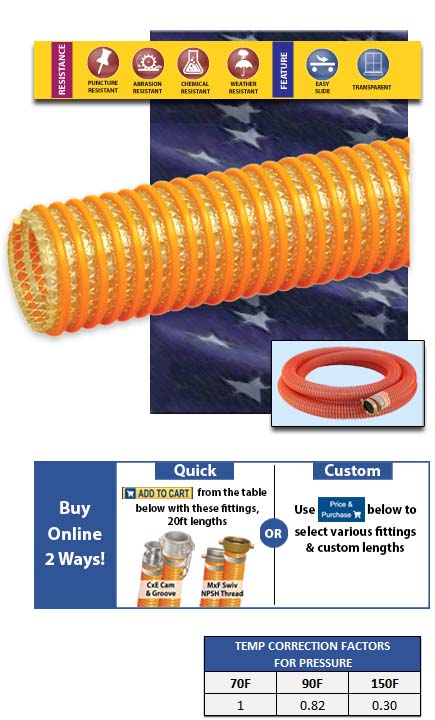

Overview: The Model PN2 is lightweight, high quality PVC hose designed for a wide variety of suction or transfer applications. It is constructed from a flexible corrugated, clear PVC with a smooth bore, and an external rigid PVC helix that allows for easy dragging.
The most common fitting and length combinations can be purchased below: 1-1/2" - 6" sizes in 20ft lengths with aluminum cam & groove fittings or aluminum M x F with brass swivel NPSH threads. Other fittings and any lengths can be configured and purchased with our Price & Purchase feature below.
Features:
- Suction Ready
- Bends Better than Other PVC Suction Hoses
- Lightweight and Easily Dragged
- Transulcent for Flow Check
- Smooth Bore
Applications:
- Industrial and Construction Liquid and Material Service where Mild Chemical Resistance is Required
- Pump Suction Sevice
Temperature: 5F to 150F
Price &
Purchase
Purchase
Choose details to price,
then add to your cart!
then add to your cart!
scroll to see more products
|
Dia (in)
|
Outer Dia (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Vac (in Hg)
|
Bend R (in)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2.03 | 20 | NPSH M X F SW | 100 | 28 | 3 | 15 | HOSE-PN2AS20MF0150 | 0.47 | $212.90 | 2 | Add to Cart |
| 1 1/2 | 2.84 | 20 | M X F AL CAM & GROOVE | 100 | 28 | 3 | 15 | HOSE-PN2AS20CE0150 | 0.47 | $216.12 | 2 | Add to Cart |
| 2 | 2.62 | 20 | NPSH M X F SW | 100 | 28 | 4 | 19 | HOSE-PN2AS20MF0200 | 0.71 | $240.90 | 2 | Add to Cart |
| 2 | 2.62 | 20 | M X F AL CAM & GROOVE | 100 | 28 | 4 | 19 | HOSE-PN2AS20CE0200 | 0.71 | $240.14 | 2 | Add to Cart |
| 3 | 3.71 | 20 | NPSH M X F SW | 100 | 28 | 6 | 27 | HOSE-PN2AS20MF0300 | 1.14 | $314.62 | 2 | Add to Cart |
| 3 | 3.71 | 20 | M X F AL CAM & GROOVE | 100 | 28 | 6 | 27 | HOSE-PN2AS20CE0300 | 1.14 | $304.28 | 2 | Add to Cart |
| 4 | 4.80 | 20 | NPSH M X F SW | 75 | 28 | 7 | 42 | HOSE-PN2AS20MF0400 | 1.75 | $465.70 | 2 | Add to Cart |
| 4 | 4.80 | 20 | M X F AL CAM & GROOVE | 75 | 28 | 7 | 42 | HOSE-PN2AS20CE0400 | 1.75 | $453.06 | 2 | Add to Cart |
