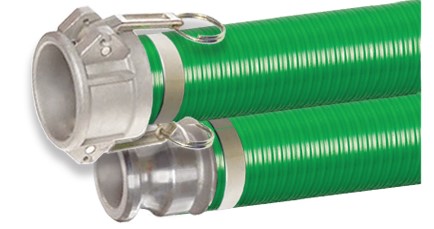

PN1 CxE PVC SUCTION HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

OverviewThe Model PN1 is an economical PVC suction hose that is lighter than similar, more expensive rubber hoses.

Here it is made available for quick purchase with popular aluminum CxE (male x female) cam & groove fittings for 1" to 12" diameters in 50ft lengths. Also avaialble here with NPSH MxF Swivel fittings.

Features:

  • Suction Ready
  • Lightweight
  • Economical
  • Chemically Resistant
  • Well Suited for Outdoor Service except severe cold
  • Smooth Bore

Applications:

  • Industrial and Construction Liquid and Material Service where Mild Chemical Resistance is Required
  • Pump Suction Sevice

Temperature 15F to 150F

scroll to see more products
Dia
(in)
Outer Dia
(in)
Length
(in)
FittingsPres
(psi)
Vac
(in Hg)
Bend R
(in)
Wt
(lbs)
Product NoWt/Ft
(lbs)
Price
($)

1 1/2 1.82 20 CAM & GRV M X F AL 90 28 5 16 HOSE-PN1AS20CE0150 .48 $67.00 Add to Cart
2 2.36 20 CAM & GRV M X F AL 70 28 6 19 HOSE-PN1AS20MF0200 .67 $79.00 Add to Cart
2 1/2 2.90 20 CAM & GRV M X F AL 65 28 8   HOSE-PN1AS20MF0250 .94 $164.10
3 3.44 20 CAM & GRV M X F AL 55 28 9   HOSE-PN1AS20CE0300 1.25 $143.30
4 4.52 20 CAM & GRV M X F AL 50 28 13   HOSE-PN1AS20CE0400 1.90 $227.50
6 6.80 20 CAM & GRV M X F AL 45 28 24   HOSSE-PN1AS20CE0600 4.60 $616.00
