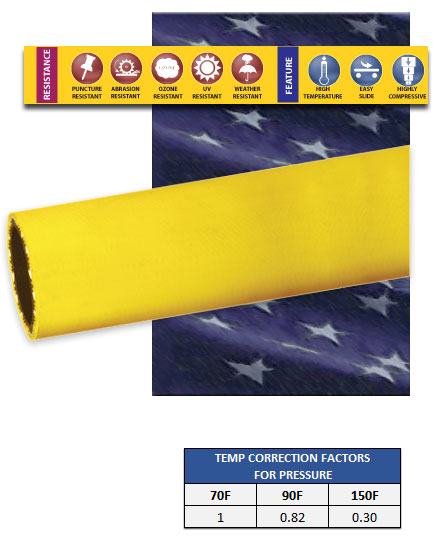

PD3 PVC EXTRA HEAVY DISCHARGE HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

Overview: The Model PD3 is an extra heavy duty PVC  layflat hose for liquid discharge. Reinforcement includes spiral plies and longitudinal synthetic cords for burst resistance. It is fire retardant. Commonly provided with cam and groove or threaded coupling fittings and hose nozzles. 1/2" to 8" diameters. This hose is sold in 25, 50 and 100 foot rolls.

Features:

  • Higher Pressure than Some Other Layflat Hoses
  • Resists Kinking and Twisting
  • Rolls up Compactly for Storage

Applications

  • Extra Heavy Duty Liquid Discharge for Industrial and Construction

Temperature-10F to 150F

scroll to see more products
Dia
(in)
Pres
(psi)
Wt/Ft
(lbs)
1 1/2 200 .48
2 200 .6
2 1/2 200 .79
3 200 1.0
4 150 1.44
6 150 2.16
