MP3 COMPOSITE LPG HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

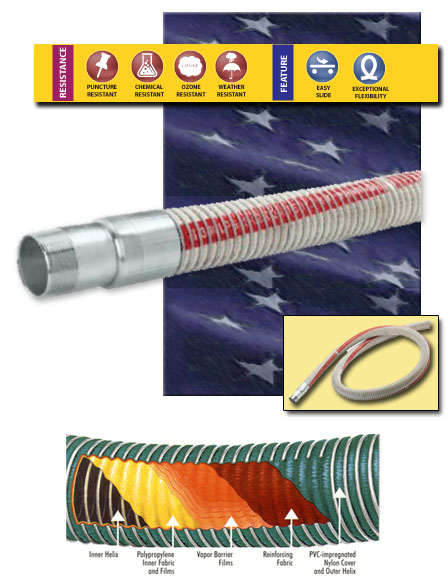

Overview: The Model MP3 is a very flexible composite Liquified Petroleum Gas (LPG) hose. This premium hose is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. It is manufactured with CS inner and outer wire and polyamide reinforcement, and is also available in 316SS inner and outer wires. Available with crimped on schedule 80 carbon steel or stainless steel threaded ends, and is also available with ANSI flanges. 1-1/4" and 2" diameters.

Features:

  • Lightweight, Flexible, and Easy to Handle.
  • Fail Safe Design
  • All Assemblies are Tested Hydrostatically and for Electrical Continuity
  • 5 to 1 Safety Factor
  • Continuous Lengths up to 100 Feet
  • CSA certified to CAN/CGA-8.1-M86

Applications:

  • Transfer of Liquified Petroleum Gas

Temperature:  -90F to 176F

MN1 Composite LNG Hose

scroll to see more products
Dia
(in)
Pres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
Lead Time
(days)
1 1/435051.15
235071.75
