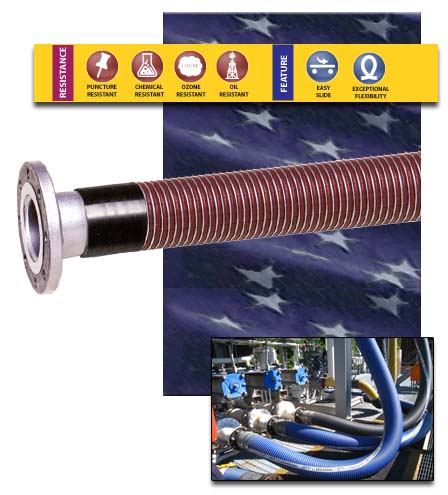

Overview: The Model MP2 composite special petroleum hose for JP aviation fuels and other special chemicals. This premium hose is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time.
The MP2 comes standard with a galvanized steel inner wire, and galvanized steel outer wire. 1" to 10" diameters, 100ft maximum length.
Features:
- Lightweight, Flexible, and Easy to Handle.
- Fail Safe Design
Temperature: -40F to 250F
Applications:
- JP Avaiation Fuels
- Wide Range of Petroleum Products, Including those with Modern Gasoline Additives
- Benzene, Ethanol, others
- Marine Service in accordance with USCG spec.154.500 and I.M.O. regulations
Price & Purchase Configurator not available
scroll to see more products
|
Dia (in)
|
Pres (psi)
|
Bend R (in)
|
Wt/Ft (lbs)
|
Lead Time (days)
|
|---|---|---|---|---|
| 1 | 250 | 4.1 | 0.6 | 10 |
| 1 1/2 | 250 | 5.1 | 0.8 | 10 |
| 2 | 250 | 6.1 | 1.6 | 10 |
| 3 | 250 | 8.2 | 2.4 | 10 |
| 4 | 250 | 14.0 | 3.2 | 10 |
