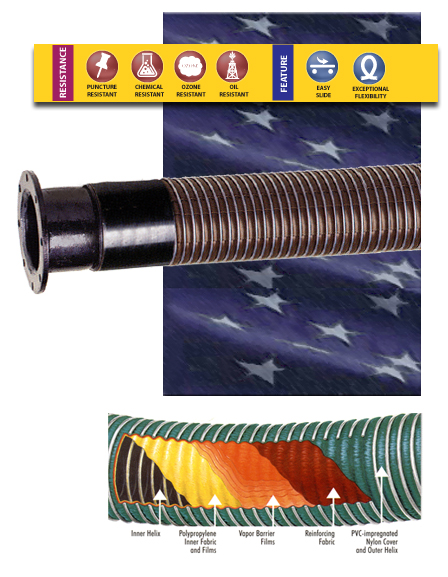

ML1 COMPOSITE BOTTOM LOADING HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

Overview: The Model ML1 composite bottom loading hose is designed for the transfer of a petroleum products. It is constructed with multiple plies of polypropylene films and polyester vapor barriers, which lead to "fail safe" safety. The multiple layers of construction require a surpentine path for liquid to leak, preventing sudden catastrophic failure. Special crimped fittings also result in leak free assemblies every time. 1" to 8" diameters.

Features:

  • Lightweight, Flexible, and Easy to Handle.
  • Fail Safe Design

Applications:

  • All Hose Loading Arms in Bottom Loading Operations

Temperature:  -40F to 212F

scroll to see more products
Dia
(in)
Pres
(psi)
Bend R
(in)
Wt/Ft
(lbs)
1 250 4 .58
1 1/2 250 5 .79
2 250 6 1.18
3 250 7.9 1.88
4 250 11.9 2.68
