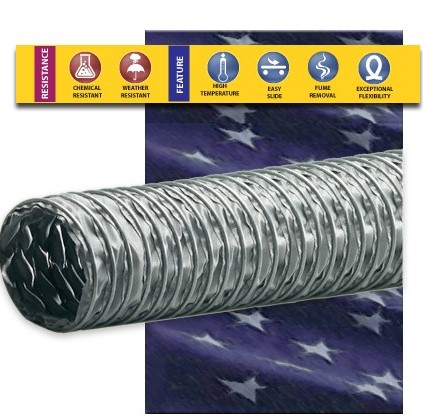

Overview: The FD2 is a top quality silver silicone coated fiberglass fabric duct hose with an external metal strip for fume and exhaust at high temperatures. Flame retardant.
Standard lengths for the hose are 25 ft, which can be purchased directly below, but other lengths are available. This hose may have an extensive lead time. Also available with a PTFE coated interior for harsh chemicals. 3" to 18" diameters.
Features:
- High Temperature Rating of 550F
- Extremely Flexible, with a Compression Ratio of 6:1 up to 6" diameters, and 8:1 up to 18" diameters
- The External Metal Strip adds Superior Strength.
- The compression ratio is 6:1 up to 6" diameters, and 8:1 above tha
- Flame retardant to UL 94V-0.
Applications:
- High Temperature Air Flow and Fume Removal, where Extra Flexiblility is Needed
Temperature: -65F to 550F
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Pres (psi)
|
Vac (in Hg)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 4 | 25 | 6.00 | 3.2 | 17 | HOSE-FD2-25-0400 | 0.66 | $626.04 | 3 | Add to Cart |
| 5 | 25 | 4.70 | 3.0 | 20 | HOSE-FD2-25-0500 | 0.78 | $765.39 | 14 | Add to Cart |
| 6 | 25 | 4.00 | 2.8 | 21 | HOSE-FD2-25-0600 | 0.80 | $917.67 | 3 | Add to Cart |
| 8 | 25 | 3.70 | 2.5 | 26 | HOSE-FD2-25-0800 | 1.00 | $1,013.79 | 3 | Add to Cart |
| 10 | 25 | 3.00 | 2.0 | 31 | HOSE-FD2-25-1000 | 1.30 | $1,305.19 | 14 | Add to Cart |
| 12 | 25 | 2.50 | 1.5 | 34 | HOSE-FD2-25-1200 | 1.40 | $1,445.72 | 14 | Add to Cart |
| 14 | 25 | 0.75 | 0.3 | 80 | HOSE-FD2-25-1400 | 3.20 | $1,671.79 | 14 | Add to Cart |
| 16 | 25 | 0.75 | 0.3 | 158 | HOSE-FD2-25-1600 | 5.50 | $1,946.03 | 14 | Add to Cart |
| 18 | 25 | 0.75 | 0.3 | 170 | HOSE-FD2-25-1800 | 5.90 | $2,171.16 | 14 | Add to Cart |
