CM1 SINGLE PLY SILICONE HOSE

Hose By Material

Hose By Application

Select a Hose

Accessories

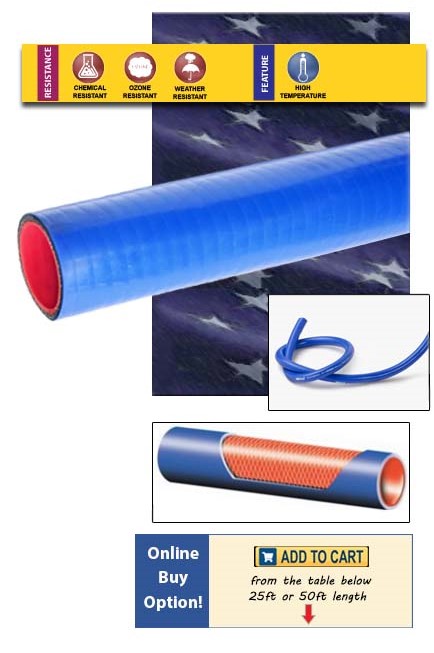

OVERVIEW:  The CM1 is a 1-Ply polyester fabric reinforced silicone hose rated to 350F, with optional aramid reinforcement rated to 500F. This "Heater Hose" meets SAE J20 R3 Class A and is resistant to coolant solutions and other chemicals. Not recommended for fuels. Standard lengths of 25ft and 50ft with longer reels available. 1/4" to 1-1/4" diameters.

FEATURES:

  • Resistant to Coolant and other Chemicals
  • Very High Temperatures
  • Resistant to Cracking, Peeling, Aging, and Ozone

APPLICATIONS:

  • Standard Equipment on Trucks, Cars, and Buses
  • Heating and Cooling Systems
  • Other Higher Temperature uses from 1/4" to 1-1/4" Sizes that are Compatible with Silicone
  • Not suitable for Fuels or Excessive Bending

TEMPERATURE: -65F to 350F (Standard Version), -65F to 500F (Aramid Version)

scroll to see more products
Dia
(in)
Outer Dia
(in)
Lngth-ft
(ft)
Pres
(psi)
Wt
(lbs)
Product NoWt/Ft
(lbs)
Price
($)

1/4 .56 25 60 3 HOSE-CM1-0250-25 .12 $81.00 Add to Cart
1/4 .56 50 60 6 HOSE-CM1-0250-50 .12 $161.00 Add to Cart
5/16 .63 25 60 3.75 HOSE-CM1-0313-25 .15 $97.00 Add to Cart
3/8 .69 25 60 4.5 HOSE-CM1-0375-25 .18 $107.00 Add to Cart
3/8 .69 50 60 9 HOSE-CM1-0375-50 .18 $214.00 Add to Cart
1/2 .81 25 60 6 HOSE-CM1-0500-25 .24 $119.00 Add to Cart
1/2 .81 50 60 12 HOSE-CM1-0500-50 .24 $237.00 Add to Cart
5/8 .93 25 60 7 HOSE-CM1-0625-25 .28 $137.00 Add to Cart
5/8 .93 50 60 14 HOSE-CM1-0625-50 .28 $273.00 Add to Cart
3/4 1.06 25 50 8.5 HOSE-CM1-0750-25 .34 $158.00 Add to Cart
3/4 1.06 50 50 17 HOSE-CM1-0625-50 .34 $315.00 Add to Cart
7/8 1.24 25 40 10 HOSE-CM1-0875-25 .40 $205.00 Add to Cart
7/8 1.24 50 40 20 HOSE-CM1-0875-50 .40 $409.00 Add to Cart
1 1.36 25 40 11.5 HOSE-CM1-1000-25 .46 $250.00 Add to Cart
1 1.36 50 40 23 HOSE-CM1-1000-50 .46 $502.00 Add to Cart
1 1/4 1.58 25 40 12.25 HOSE-CM1-1250-25 .49 $279.00 Add to Cart
1 1/4 1.58 50 40 25 HOSE-CM1-1250-50 .49 $557.00 Add to Cart
