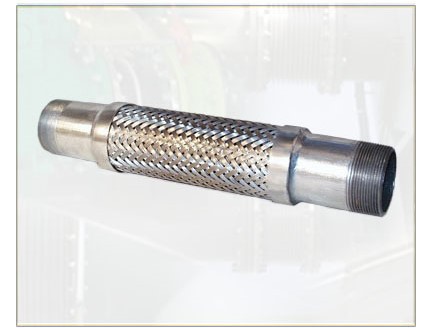

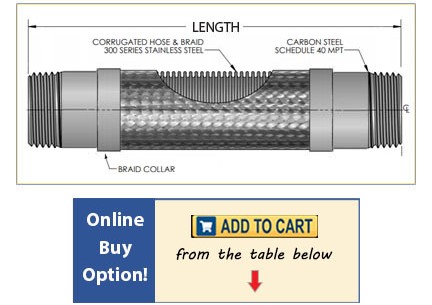

OVERVIEW: Hosecraft USA stocks two standard lengths of carbon steel MNPT threaded stainless steel braided flexible connectors for 3/8" to 2-1/2" diameters. The two stocked sizes are designated as Short and Long lengths, as shown below. The short lengths are designed to allow a permanent offset of 1/4", while the long lengths allow 1/2".
In addition to the stock size/fittings shown here, other specials of any length and fittings can be quickly fabricated. Contact the factory for a quotation
FEATURES:
- Kept in stock in two standard lengths, with specials available
- Economical
- Does not require tie rods
APPLICATIONS:
- Minimizing vibration and accommodating lateral movements as a flexible pump and other equipment connector
- Adding lateral movement capacity for any steel piping with threaded connections
TEMPERATURE: to 1200°F, Note Pressure Derating
scroll to see more products
| NAME | TYPE |
DIA (in)
|
LNGTH (in)
|
PRES (psi)
|
WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|
| 3/8 X 6 TTSC BRAIDED CNCTR | SHORT | 3/8 | 6 | 1650 | 0.75 | TTSC0038 | $33.00 | Add to Cart |
| 1/2 X 6-1/2 TTSC BRAIDED CNCTR | SHORT | 1/2 | 6 1/2 | 1375 | 1.00 | TTSC0050 | $34.00 | Add to Cart |
| 1/2 X 10 TTLC BRAIDED CNCTR | LONG | 1/2 | 10 | 1375 | 1.00 | TTLC0050 | $44.00 | Add to Cart |
| 3/4 X 7 TTSC BRAIDED CNCTR | SHORT | 3/4 | 7 | 750 | 1.00 | TTSC0075 | $35.00 | Add to Cart |
| 3/4 X 10 TTLC BRAIDED CNCTR | LONG | 3/4 | 10 | 750 | 1.00 | TTLC0075 | $45.00 | Add to Cart |
| 1 X 8 TTSC BRAIDED CNCTR | SHORT | 1 | 8 | 605 | 1.00 | TTSC0100 | $47.00 | Add to Cart |
| 1 X 10 TTLC BRAIDED CNCTR | LONG | 1 | 10 | 605 | 1.00 | TTLC0100 | $61.00 | Add to Cart |
| 1 1/4 X 8-1/2 TTSC BRAID CNCTR | SHORT | 1 1/4 | 8 1/2 | 570 | 1.00 | TTSC0125 | $59.00 | Add to Cart |
| 1 1/4 X 10 TTLC BRAIDED CNCTR | LONG | 1 1/4 | 10 | 570 | 1.50 | TTLC0125 | $66.00 | Add to Cart |
| 1 1/2 X 9 TTSC BRAIDED CNCTR | SHORT | 1 1/2 | 9 | 525 | 1.50 | TTSC0150 | $70.00 | Add to Cart |
| 1 1/2 X 12 TTLC BRAIDED CNCTR | LONG | 1 1/2 | 12 | 525 | 2.00 | TTLC0150 | $81.00 | Add to Cart |
| 2 X 10 TTSC BRAIDED CNCTR | SHORT | 2 | 10 | 455 | 2.00 | TTSC0200 | $91.00 | Add to Cart |
| 2 X 14 TTLC BRAIDED CNCTR | LONG | 2 | 14 | 455 | 3.00 | TTLC0200 | $98.00 | Add to Cart |
| 2-1/2 X 16 TTLC BRAIDED CNCTR | LONG | 2 1/2 | 16 | 345 | 4.00 | TTLC0250 | $144.00 | Add to Cart |
