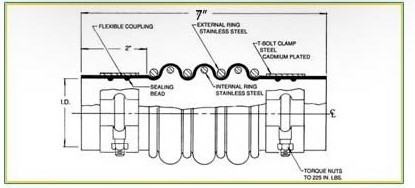

OVERVIEW: Hosecraft SLV Flexible Couplings allows for convenient sleeve end connections, and is used in lieu of flanged rubber expansion joints. It is clamped over steel and plastic pipes, and secured with 1” wide T-bolt clamps. They are rated for 75psi, and are of high quality construction. 2" to 12" diameters.

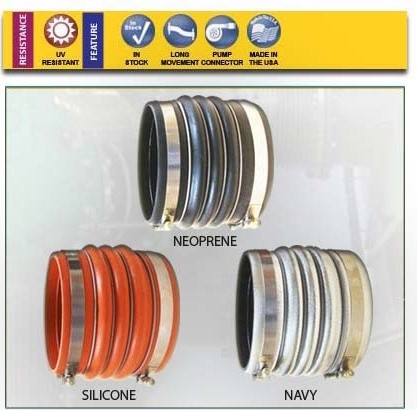

Materials are black neoprene or red silicone, with nylon and internal and external 316 stainless steel rings. A fire retardant version is also available with an aluminized glass cloth cover, which meets Navy specification A-A-50604 (MIL-E-15330 Class B.)
FEATURES:
- High quality construction
- Suitable for pressurized piping systems to 75psi
- Clamps over piping
APPLICATIONS:
- Where sleeve ends are required for pressurized systems
TEMPERATURE: 225° F for Neoprene, 500°F for Silicone
scroll to see more products
| NAME |
DIA (in)
|
DIA 1 (in)
|
LNGTH (in)
|
PRES (psi)
|
VAC (in Hg)
|
COMPR (in)
|
EXTEN (in)
|
WT (lbs)
|
P/N |
PRICE ($)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" SLV FLEX COUPLING W/ CLAMPS | 2 | 2 3/8 | 7 | 75 | 20 | 1 | 0.5 | 1.6 | SLV0200 | $491.00 | Add to Cart |
| 2-1/2" SLV FLEX CPLNG W/CLAMPS | 2 1/2 | 2 7/8 | 7 | 75 | 20 | 1 | 0.5 | 1.8 | SLV0250 | $503.00 | Add to Cart |
| 3" SLV FLEX COUPLING W/ CLAMPS | 3 | 3 1/2 | 7 | 75 | 20 | 1 | 0.5 | 2.0 | SLV0300 | $507.00 | Add to Cart |
| 4" SLV FLEX COUPLING W/ CLAMPS | 4 | 4 1/2 | 7 | 75 | 20 | 1 | 0.5 | 2.4 | SLV0400 | $607.00 | Add to Cart |
| 5" SLV FLEX COUPLING W/ CLAMPS | 5 | 5 5/8 | 7 | 75 | 20 | 1 | 0.5 | 2.9 | SLV0500 | $627.00 | Add to Cart |
| 6" SLV FLEX COUPLING W/ CLAMPS | 6 | 6 5/8 | 7 | 75 | 20 | 1 | 0.5 | 3.4 | SLV0600 | $692.00 | Add to Cart |
| 8" SLV FLEX COUPLING W/ CLAMPS | 8 | 8 5/8 | 7 | 75 | 20 | 1 | 0.5 | 4.3 | SLV0800 | $725.00 | Add to Cart |
| 10 SLV FLEX COUPLING W/ CLAMPS | 10 | 10 3/4 | 7 | 75 | 20 | 1 | 0.5 | 5.1 | SLV1000 | $803.00 | Add to Cart |
| 12" SLV FLEX CPLNG W/ CLAMPS | 12 | 12 3/4 | 7 | 75 | 20 | 1 | 0.5 | 6.7 | SLV1200 | $867.00 | Add to Cart |
