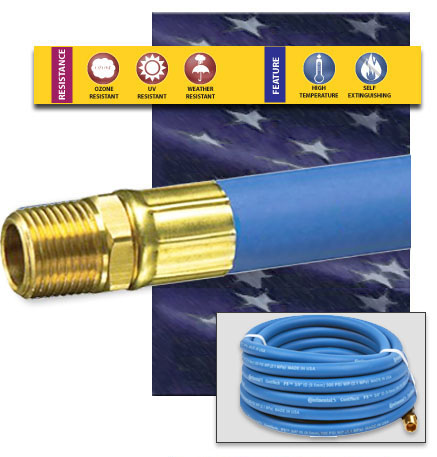

Overview: The Model PM1-AS is a high quality, lightweight and flexible TPE (thermoplastic elastomer) multipurpose air hose, mainly used for compressed air to pneumatic tools and equipment. Available as 25, 50, and 100ft assemblies, in 1/4", 3/8", and 1/2" diameters, with brass NPT thread ends that can be purchased below. Also available in red, with custom fittings and lengths, and in full reels.
Features:
- Performs Well in Cold Temperautres, unlike PVC
- Weighs Consideragly Less than Rubber Alternatives
- RMA Class B for Medium Oil Resistance, unlike PVC
- Smooth Cover that Resists Abrasion when Dragged
- Easily Cleaned & Non-Marking
Applications:
- Compressed Air for Pneumatic Tools and Equipment
- Water
Temperature: -40F to 158F.
scroll to see more products
|
Dia (in)
|
Lngth-ft (ft)
|
Fittings |
Pres (psi)
|
Wt (lbs)
|
Product No |
Wt/Ft (lbs)
|
Price ($)
|
Lead Time (days)
|
|
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 25 | 1/4 BRASS MALE X 1/4 BRASS MALE | 300 | 4 | HOSE-PM1ASBLU25MM0025 | 0.06 | $28.80 | 3 | Add to Cart |
| 1/4 | 50 | 1/4 BRASS MALE X 1/4 BRASS MALE | 300 | 5 | HOSE-PM1ASBLU50MM0025 | 0.06 | $46.80 | 3 | Add to Cart |
| 1/4 | 100 | 1/4 BRASS MALE X 1/4 BRASS MALE | 300 | 8 | HOSE-PM1ASBLU100MM0025 | 0.06 | $83.26 | 3 | Add to Cart |
| 3/8 | 25 | 3/8 BRASS MALE X 3/8 BRASS MALE | 300 | 5 | HOSE-PM1ASBLU25MM0038 | 0.09 | $33.30 | 3 | Add to Cart |
| 3/8 | 50 | 3/8 BRASS MALE X 3/8 BRASS MALE | 300 | 7 | HOSE-PM1ASBLU50MM0038 | 0.09 | $53.10 | 3 | Add to Cart |
| 3/8 | 100 | 3/8 BRASS MALE X 3/8 BRASS MALE | 300 | 12 | HOSE-PM1ASBLU100MM0038 | 0.09 | $94.06 | 3 | Add to Cart |
| 1/2 | 25 | 1/2 BRASS MALE X 1/2 BRASS MALE | 300 | 5 | HOSE-PM1ASBLU25MM0050 | 0.16 | $58.50 | 3 | Add to Cart |
| 1/2 | 50 | 1/2 BRASS MALE X 1/2 BRASS MALE | 300 | 10 | HOSE-PM1ASBLU50MM0050 | 0.16 | $98.56 | 3 | Add to Cart |
| 1/2 | 100 | 1/2 BRASS MALE X 1/2 BRASS MALE | 300 | 17 | HOSE-PM1ASBLU100MM0050 | 0.16 | $177.76 | 3 | Add to Cart |
