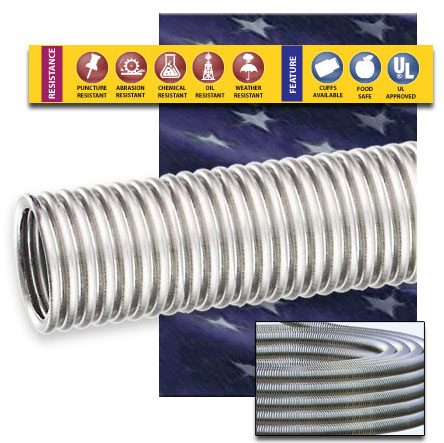

SU1 STAINLESS CORRUGATED UNBRAIDED HOSE Model Image
  HOME | E-MAIL | REQUEST HELP | ABOUT US |  CART 800-584-4168 | FX 312-421-6327



SU1 STAINLESS CORRUGATED UNBRAIDED HOSE





The Model SU1 is a corrugated stainless steel metal hose that can be used at lower pressures at high temperatures. It is quite flexible and resistant to vibration, and is available in a large range of sizes.  For higher pressures, see the braided metal hoses options.

Applications for the corrugated metal hose include liquid and gas transfer at high temperatures and lower pressures.  All fittings are welded to the hose.  Also available in 316 stainless steel and monel.

Also available in a stay-put design.  Contact factory for details.

Temperature range is -320F to 1500F.
Related Products
Related Product
 Related Product
HOT HOSE SLEEVE ABRASION SLEEVE
  Price & Purchase Configurator
Choose details to price,
then add to your cart!

PDF Submittal Sheet

Dia
(in)
 Pres
(psi)
 Vac
(in Hg)
 Bend R
(in)
 Wt/Ft
(lbs)
1/4  180  30  5  .11
3/8  100  30  5.5  .16
1/2  80  30  6  .19
3/4  70  30  8  .3
1  40  30  9  .4
1 1/4  25  30  10.5  .52
1 1/2  20  30  12  .75
2  15  29  15  .95
2 1/2  12  30  20  1.2
3  10  30  22  1.42
3 1/2  9  30  24  1.65
4  8  30  27  1.9
5  6  30  31  3.22
6  5  30  36  3.87
8  6  30  40  5.14
10  5  30  50  8.2
12  3  30  60  9.8
14  3  30  70  10.6
16  2  30  74  12.2
18  1  30  82  13.8
20  1  30  90  15.4
22  1  30  98  17.1
24  .75  30  104  18.6
