MD1 ALUMINUM DUCT HOSE

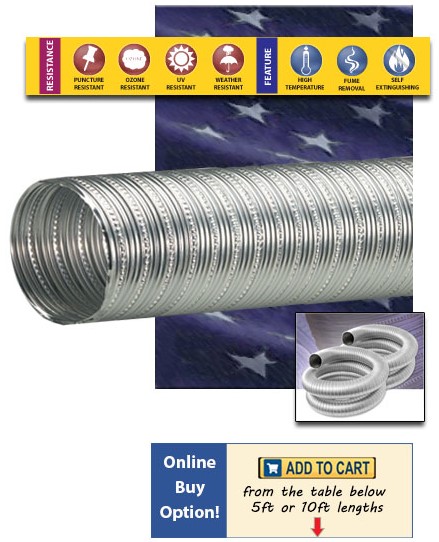

The MD1 Aluminum Duct hose is helically corrugated for light weight and hand bendable applications that need to be self-supporting and stationary.  This metal duct hose works in chemical fume, exhaust, HVAC, and many other systems.

Comes in standard lengths of 5 and 10 feet that can be coupled with screws, or in special lengths (contact factory).

Positive pressure 12" w.g. and negative pressure 1" w.g. ULC listing as Class 1 air duct.  Compression ratio 3:1.

Available in a 316 stainless steel version in the MD2 hose.

Temperature range -40 to 400F. ($100 minimum order.)
Related Products
Related Product
 Related Product
MD2 SS DUCT HOSE MD3 TISS DUCT HOSE
  Call or email to purchase or price
  PDF Submittal Sheet


Dia
(in)
 Lngth-ft
(ft)
 Bend R
(in)
 Wt
(lbs)
 Product No
 Wt/Ft
(lbs)
 Price
($)
2  5  4  .7  MD10200-5  .113  $46.80  Add to Cart >
2  10  4  1.4  MD10200-10  .113  $89.68  Add to Cart >
3  5  5.7  1  MD10300-5  .167  $49.12  Add to Cart >
3  10  5.7  2.1  MD10300-10  .167  $94.33  Add to Cart >
4  5  7.5  1.3  MD10400-5  .2  $53.64  Add to Cart >
4  10  7.5  2.5  MD10400-10  .2  $103.35  Add to Cart >
5  5  9.5  1.6  MD10500-5  .25  $64.11  Add to Cart >
5  10  9.5  3.1  MD10500-10  .25  $124.18  Add to Cart >
6  5  11.2  1.9  MD10600-5  .3  $65.10  Add to Cart >
6  10  11.2  3.8  MD10600-10  .3  $126.15  Add to Cart >
7  5  13  2.2  MD10700-5  .35  $77.32  Add to Cart >
7  10  13  4.4  MD10700-10  .35  $150.48  Add to Cart >
8  5  15  2.2  MD10800-5  .35  $92.79  Add to Cart >
8  10  15  4.4  MD10800-10  .35  $158.79  Add to Cart >
10  5  19  2.8  MD10100-5  .44  $101.75  Add to Cart >
10  10  19  5.5  MD10100-10  .44  $199.29  Add to Cart >
12  5  23  3.3  MD10120-5  .53  $118.96  Add to Cart >
12  10  23  6.6  MD10120-5  .53  $234.09  Add to Cart >
