HM3 HYDRAULIC VERY HIGH PRESSURE HOSE

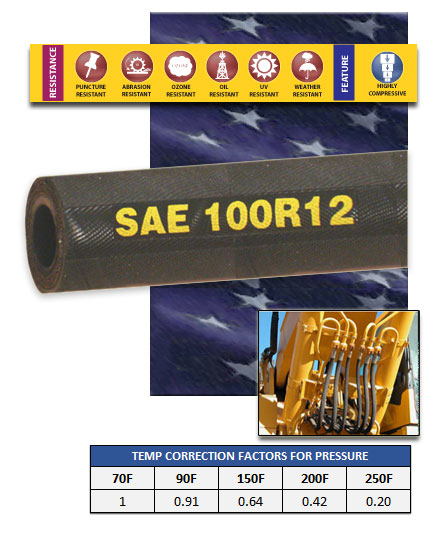

The Model HM3 is a rubber SAE 100R12 hydraulic hose for very high pressures. It uses a black oil resistant tube and gray Neoprene cover with four spiral steel wire reinforcement.

All hydraulic end fittings available. MSHA approved. Temperature range is -40F to 250F.
  Call or email to purchase or price


Dia
(in)
 Pres
(psi)
 Bend R
(in)
 Wt/Ft
(lbs)
3/8  4000  2  0.26
1/2  4000  3.5  0.39
3/4  4000  4.8  0.52
1  4000  6  0.66
1 1/4  3000    0.79
1 1/2  2500    0.92
2  2500    1.05
