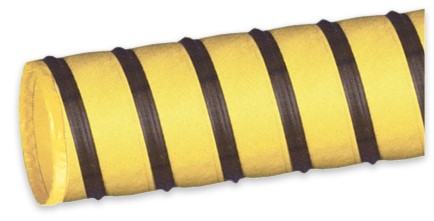

VB3 INSULATED BLOWER HOSE





The Model VB3 is an insulated blower hose designed for heating and cooling.  It resists UV rays, ozone, and mildew, and can be easily stored as well. Temperature range is -20F to 180F.

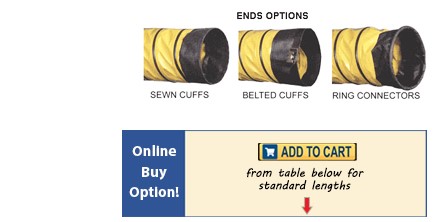

The hose is made with flame retardant UL94V-O rating Polyester-Vinyl laminate.  Neoprene coated polyester fabric is also available, with a temperature range from -40F to 250F.  End finishes include standard, belt, or expanded cuffs.

It is available in diameters from 4" to 24", with standard lengths of 25 feet.
  Call or email to purchase or price

PDF Submittal Sheet


Dia
(in)
 Lngth-ft
(ft)
 Ends
 Pres
(psi)
 Bend R
(in)
 Wt
(lbs)
 Price
($)
4  25  SWEN CUFFS  4  2.24  10  $330.00  Add to Cart >
5  25  SWEN CUFFS  3.75  2.85  10  $440.00  Add to Cart >
6  25  SWEN CUFFS  3.3  3.57  15  $435.00  Add to Cart >
6  25  BELTED CUFFS  3.3  3.57  15  $480.00  Add to Cart >
8  25  SWEN CUFFS  2.47  4.7  23  $485.00  Add to Cart >
8  25  BELTED CUFFS  2.47  4.7  23  $525.00  Add to Cart >
10  25  SWEN CUFFS  1.98  6  28  $600.00  Add to Cart >
10  25  BELTED CUFFS  1.98  6  28  $650.00  Add to Cart >
12  25  SWEN CUFFS  1.66  8  34  $690.00  Add to Cart >
12  25  BELTED CUFFS  1.66  8  34  $750.00  Add to Cart >
14  25  SWEN CUFFS  1.42  8.5  38  $800.00  Add to Cart >
14  25  BELTED CUFFS  1.42  8.5  38  $875.00  Add to Cart >
16  25  SWEN CUFFS  1.25  9.6  43  $925.00  Add to Cart >
16  25  BELTED CUFFS  1.25  9.6  43  $1005.00  Add to Cart >
18  25  SWEN CUFFS  1.11  11  48  $1045.00  Add to Cart >
18  25  BELTED CUFFS  1.11  11  48  $1140.00  Add to Cart >
20  25  SWEN CUFFS  1  12  54  $1155.00  Add to Cart >
20  25  BELTED CUFFS  1  12  54  $1260.00  Add to Cart >
24  25  SWEN CUFFS  .85  14  64  $1385.00  Add to Cart >
24  25  BELTED CUFFS  .85  14  64  $1500.00  Add to Cart >
